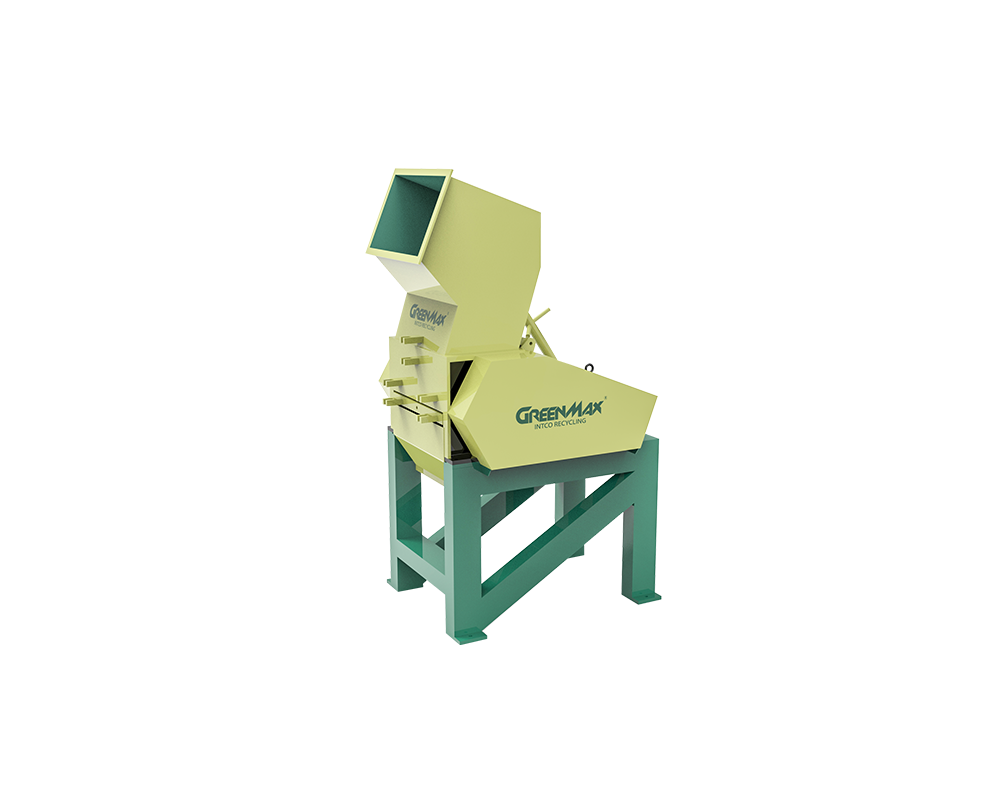

GREENMAX Plastic Shredder
Top HighlightsThe shredder knives are made of durable SKD11 material.
The easy-opening system makes blade and screen mesh changes convenient.
Reduce the size of various materials, including rigid plastics, foam, and plastic films.
Designed for efficiency, it cuts cleanly with low dust.
Despite its power, the shredder operates with low noise.
-
Type
R-600
R-800T -
Capacity
300 - 400 kg / h
500 - 700 kg / h -
Power
15 kw
45 kw
DESCRIPTION
GREENMAX Plastic Shredder can crush various plastic products, such as foam, plastic bottles, PP bottles and HDPE waste, into small pieces for subsequent recycling and reuse. It uses high-performance cutting tools with powerful crushing capabilities and high work efficiency. The device has a relatively low noise output while having little impact on 5S on site.
Applicable Material:
Rigid Plastics
PET Bottles
Cold-pressing blocks
Hot-melting ingots
Loose Foam
Film Material
TECHNICAL DATA
|
Type |
R-400 |
R-600 |
R-500T |
R-700T |
R-800T |
R-1000T |
|
Motor power |
7.5kw |
15kw |
18.5kw |
30kw/37kw |
45kw |
75kw |
|
Hopper Dimension |
400*240(mm) |
600*500(mm) |
480*330(mm) |
660*450(mm) |
720*530(mm) |
900*550(mm) |
|
Rotary Knives |
12pcs |
18pcs |
24pcs |
33pcs |
36pcs |
45pcs |
|
Fixed Knives |
2pcs |
4pcs |
2pcs |
4pcs |
4pcs |
10pcs |
|
Knives Material |
D2 |
D2 |
D2 |
D2 |
D2 |
D2 |
|
Rotary Diameter |
205mm |
320mm |
320mm |
420mm |
530mm |
550mm |
|
Sieve Mesh Size |
（Optional range）12-50mm |
|||||
|
Production Capacity |
150-200kg/h |
300-400 kg/h |
200-300kg/h |
300-400kg/h |
500-700kg/h |
800-1200kg/h |
|
Weight |
500kg |
1300kg |
1500kg |
2000kg |
2500kg |
3000kg |

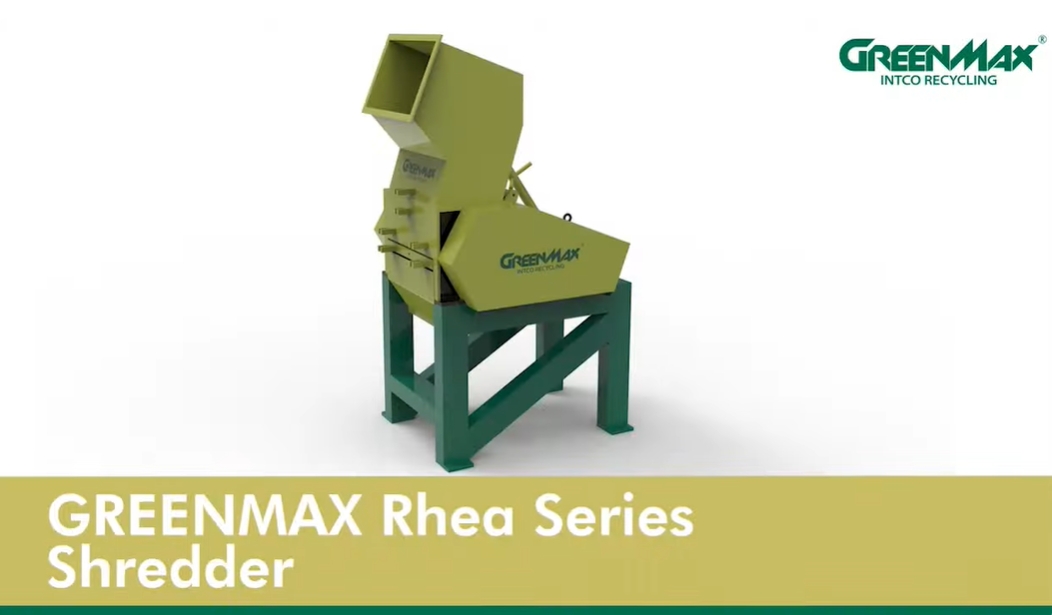

MACHINE VIDEO
