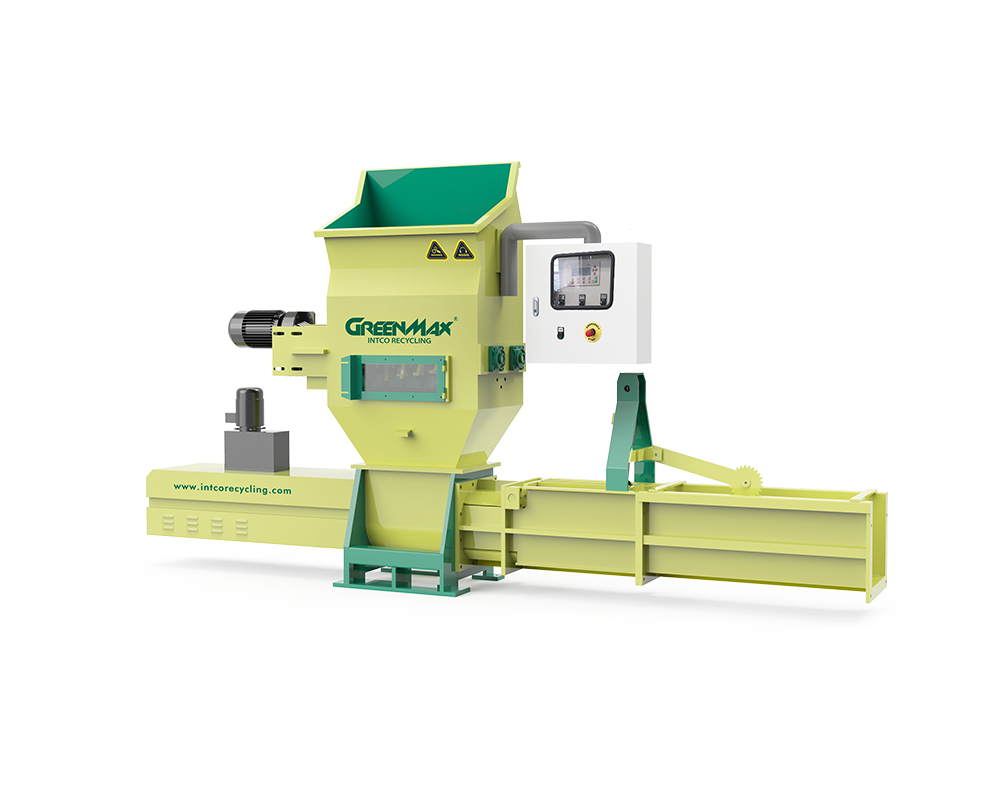

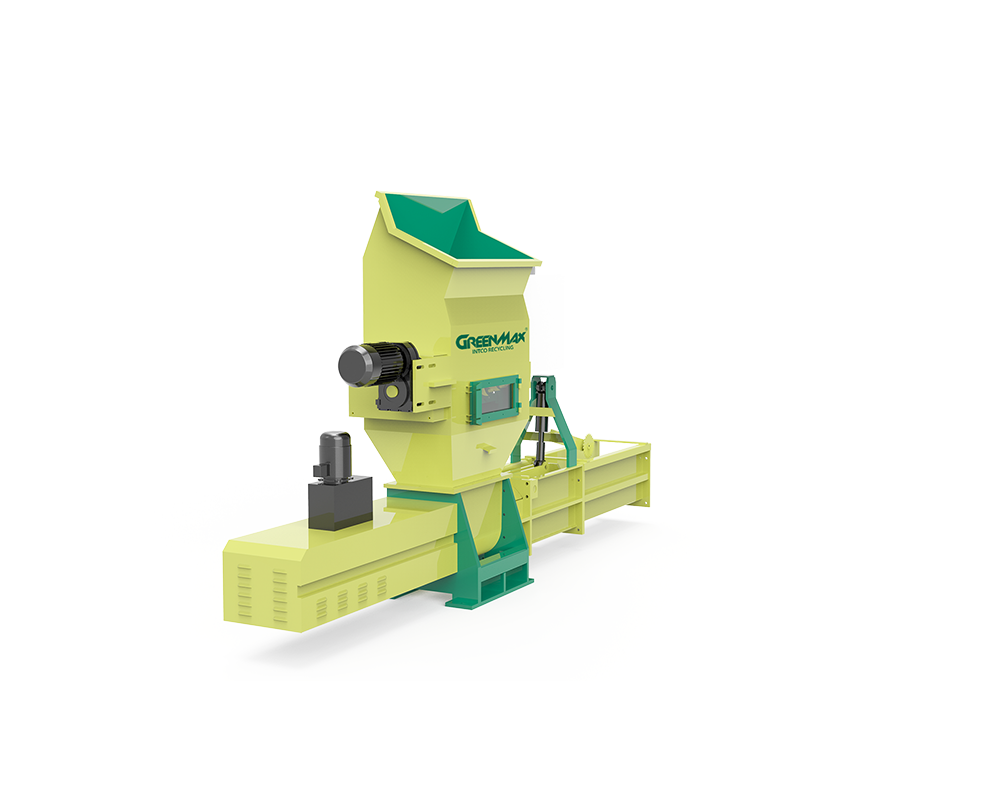

GREENMAX Foam Compactor A-C100
Top Highlights•Screw compression technology, Lower utility consumption, and higher efficiency
•Able to deal with fish boxes that contain water
•CE approved and comply with UL/CSA standards
•A speed control device is designed to prevent EPS from melting
•Reputable & High-quality components make the machine reliable and durable
•SIEMENS control system guarantees easy and simple operation.
-
Type
A-C100 -
Capacity
100 kg / h -
Power
10.25 kw
DESCRIPTION
GREENMAX Foam Compactor A-C100 is equipped with screw compression technology, which can compress foam to one-fiftieth of its original volume. The machine first crushes the foam, and then compresses and molds the foam through physical extrusion of the screw to reduce transportation costs. The machine has a production capacity of 100kg/h, and under normal circumstances, the stacking density can reach 200-400kg/m3.
Applicable Material:
EPS
EPS Cups &Trays
XPS
EPP
GREENMAX machines are often part of a larger recycling system and can be integrated with other equipment like shredders and granulators to streamline the recycling process.
TECHNICAL DATA
|
Total Power Consumption |
10.25 kw / 13.75 hp |
|
Crusher Power Consumption |
2.2 kw / 2.95 hp |
|
Production Capacity |
100 kg per hour / 220 lbs per hour |
|
EPS Compression Ratio |
50:1 |
|
Compressed EPS Density |
200-400 kg/m3 / 337-674lbs/cubic yard |
|
EPS Block Dimensions |
300*300 (w/h) mm / 11.8*11.8 (w/h) in. |
|
Feed Hopper Door |
800*515 (l/w) mm / 31.5*20.3 (l/w) in. |
|
Dimensions |
3680*570*2020(l/w/h) mm / 144.9*22.4*79.5(l/w/h) in. |
|
Shipping Dimensions |
Main part：2900*765*2230(l/w/h) mm / 114.2*30.1*87.8(l/w/h) in. Output chute：1220*510*640(l/w/h) mm / 48.0*20.1*25.2(l/w/h) in. |
|
Weight |
1500 kg / 3300 lbs |

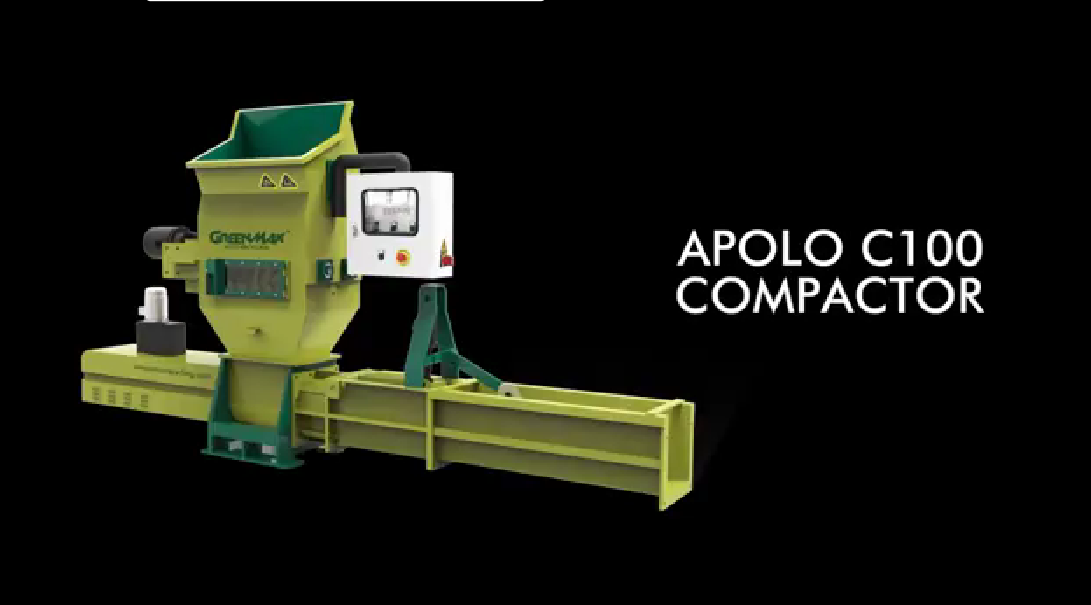

MACHINE VIDEO

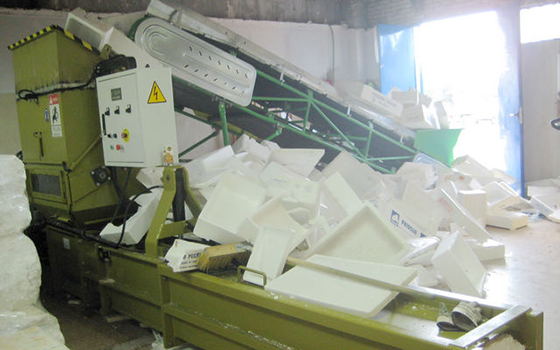

RELATED CASE
