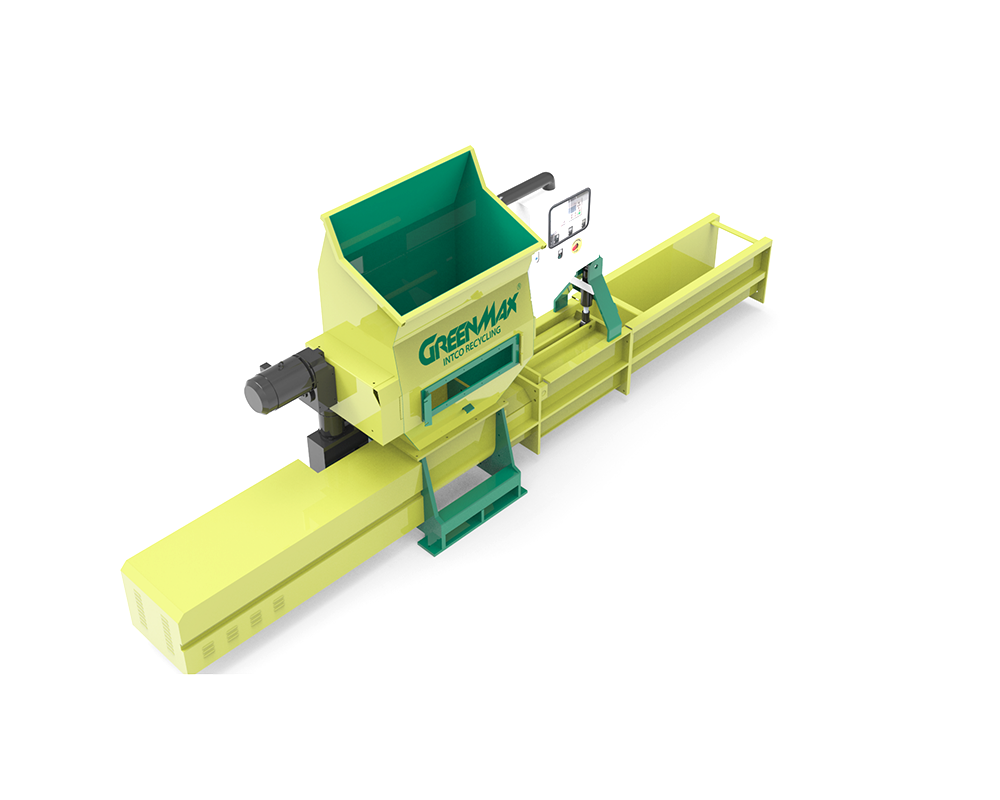

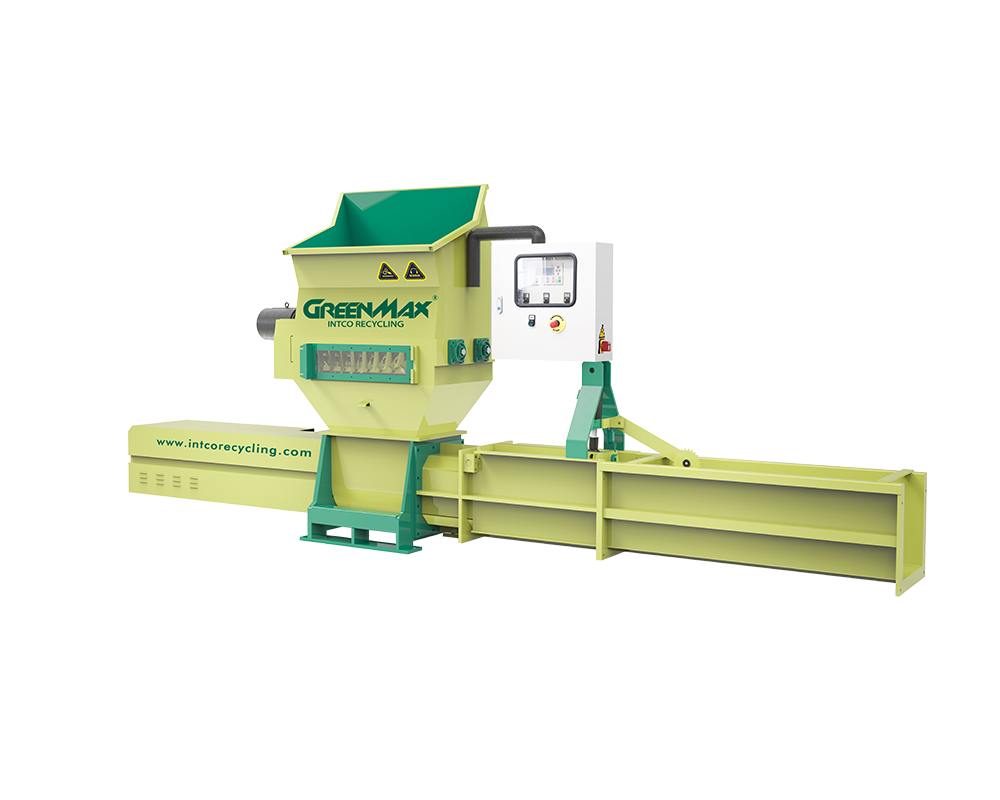

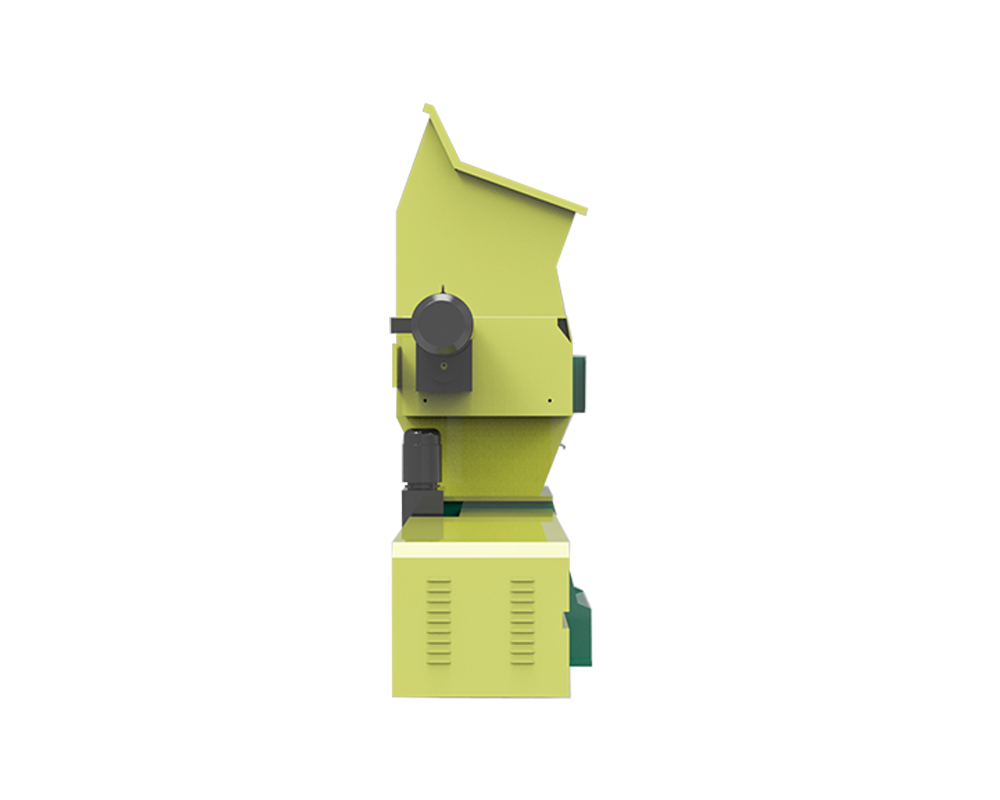

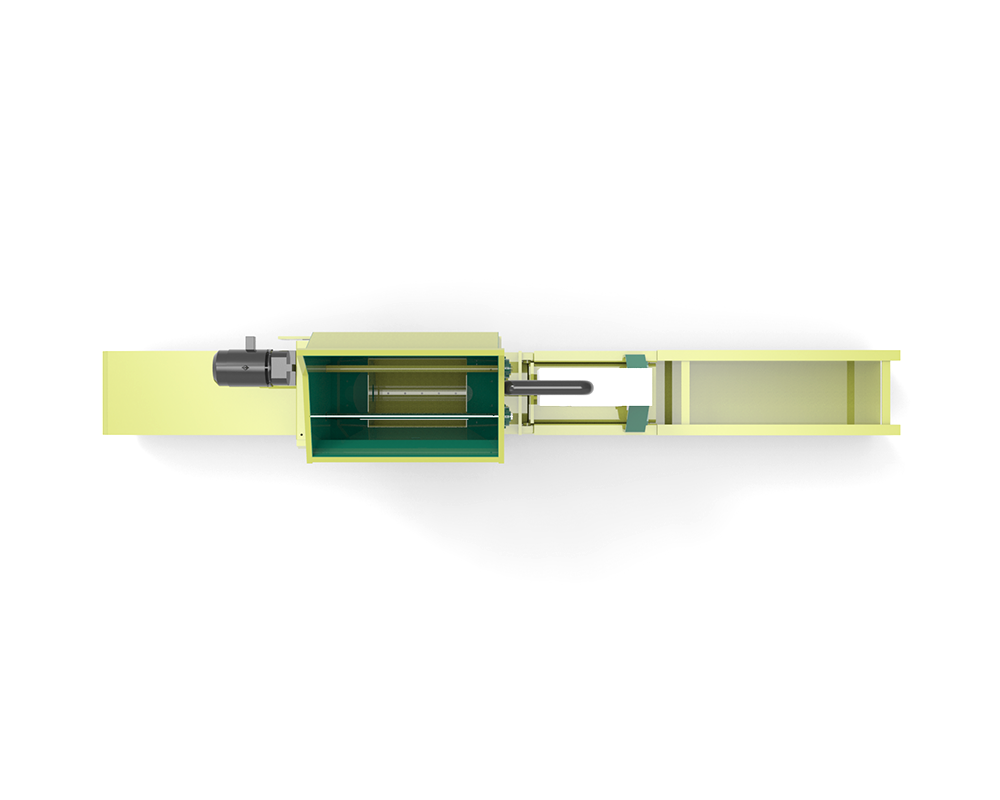

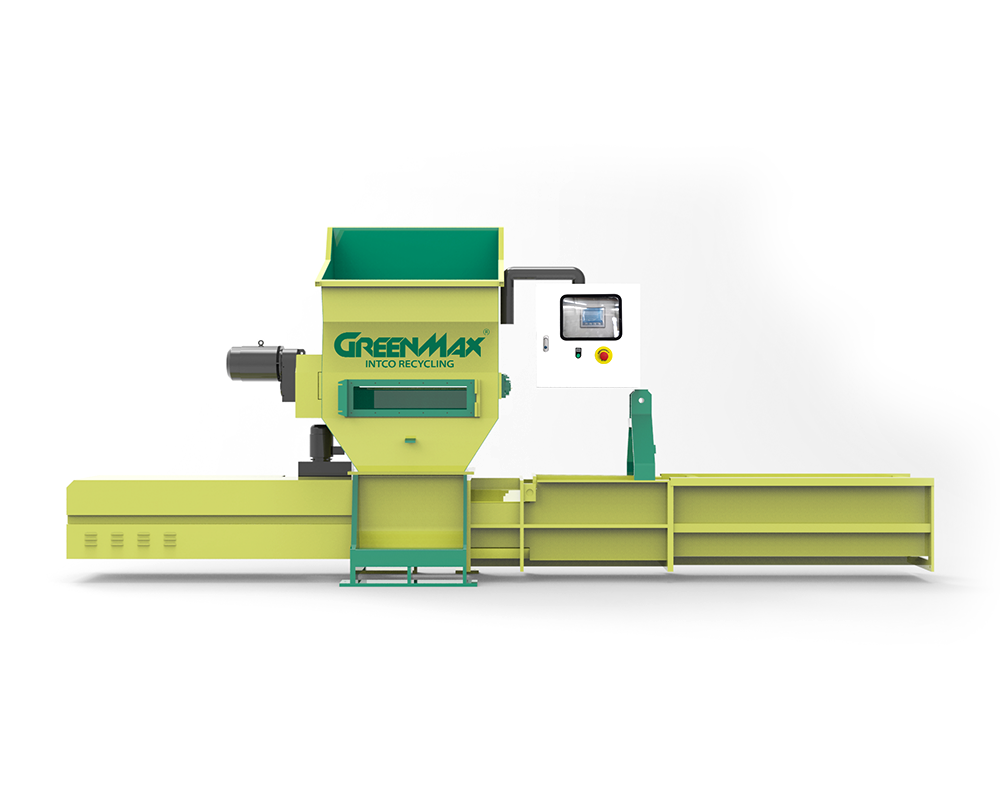

GREENMAX Foam Compactor A-C200
Top HighlightsScrew compression technology, Lower utility consumption, and higher efficiency
Able to deal with fish boxes that contain water
CE approved and comply with UL/CSA standards
A speed control device is designed to prevent EPS from melting
Reputable & High-quality components make the machine reliable and durable
SIEMENS control system guarantees easy and simple operation.
-
Type
A-C200 -
Capacity
200 kg / h -
Power
19.55 kw
DESCRIPTION
GREENMAX Foam Compactor A-C200 is equipped with screw compression technology, which can compress foam to one-fiftieth of its original volume. The machine first crushes the foam, and then compresses and molds the foam through physical extrusion of the screw to reduce transportation costs. The machine has a production capacity of 200kg/h, and under normal circumstances, the stacking density can reach 200-400kg/m3.
Applicable Material:
EPS

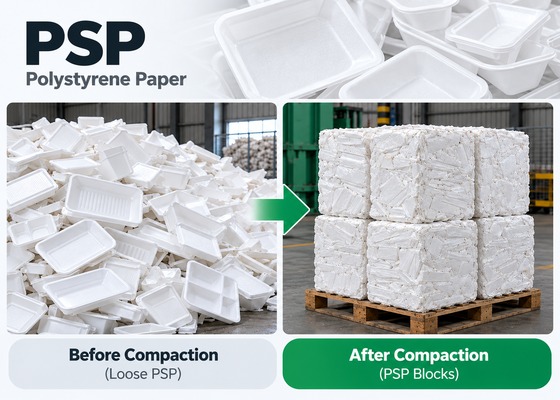

EPS Cups &Trays

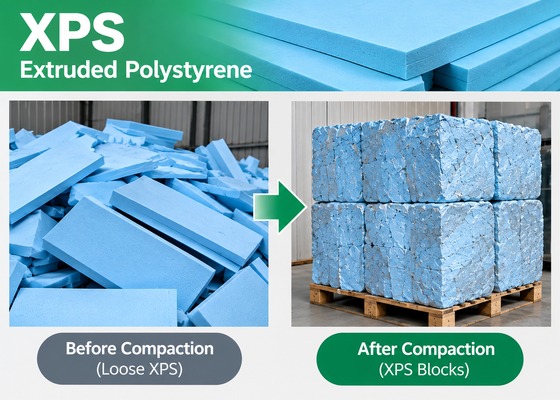

XPS

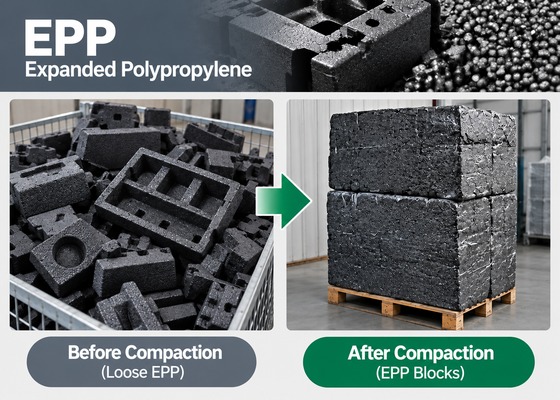

EPP
TECHNICAL DATA
|
Total Power Consumption |
19.55kw / 26.22hp |
|
Crusher Power Consumption |
4 kw / 5.36 hp |
|
Production Capacity |
200 kg per hour / 440 lbs per hour |
|
EPS Compression Ratio |
50:1 |
|
Compressed EPS Density |
200-400 kg/m3 / 337-674lbs/cubic yard |
|
EPS Block Dimensions |
380*380 (w/h) mm / 15.0*15.0 (w/h) in. |
|
Feed Hopper Door |
1000*650 (l/w) mm / 39.4*25.6 (l/w) in. |
|
Dimensions |
4940*750*2080(l/w/h) mm / 194.5*29.5*81.9(l/w/h) in. |
|
Shipping Dimensions |
Main part：3670*920*2330(l/w/h) mm / 144.5*36.2*91.7(l/w/h) in. Output chute：1630*620*710(l/w/h) mm / 64.2*24.4*28.0 (l/w/h) in. |
|
Weight |
2000 kg / 4400 lbs |

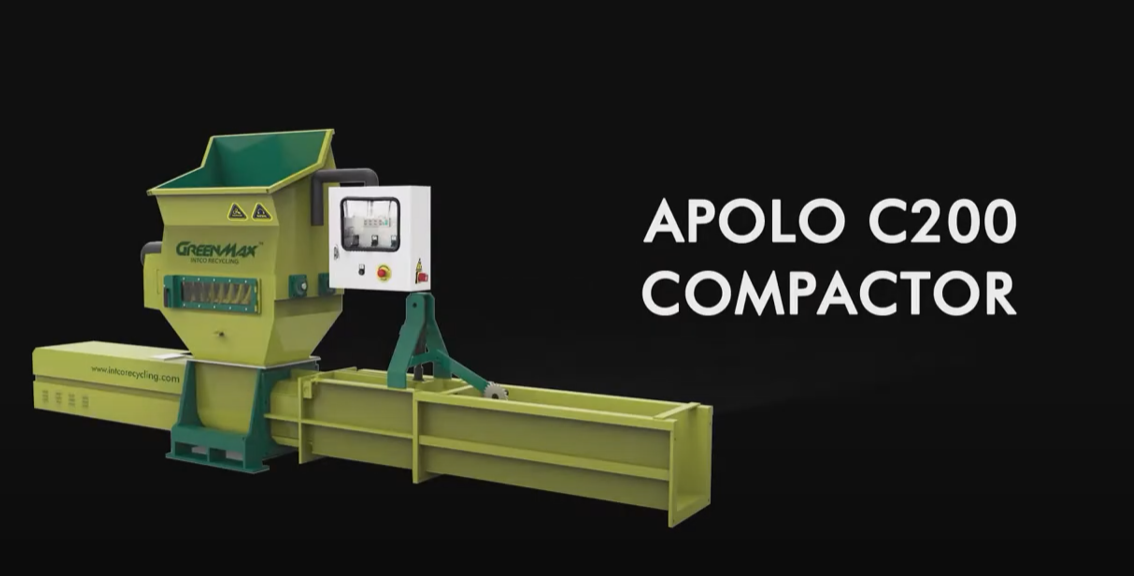

MACHINE VIDEO

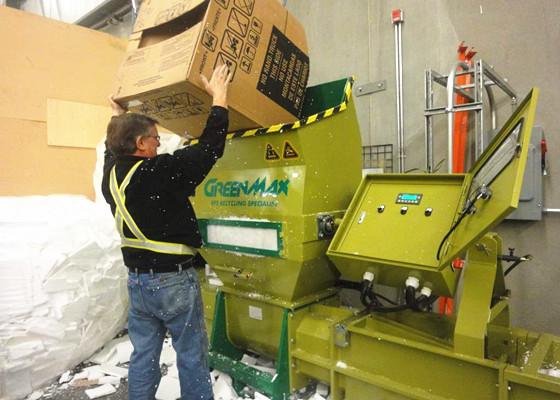

RELATED CASE
