GREENMAX Foam Compactor A-C300
Top HighlightsScrew compression technology, Lower utility consumption, and higher efficiency
Able to deal with fish boxes that contain water
CE approved and comply with UL/CSA standards
A speed control device is designed to prevent EPS from melting
Reputable & High-quality components make the machine reliable and durable
SIEMENS control system guarantees easy and simple operation.
-
Type
A-C300 -
Capacity
300 kg / h -
Power
31.05 kw
DESCRIPTION
GREENMAX Foam Compactor A-C300 is equipped with screw compression technology, which can compress foam to one-fiftieth of its original volume. The machine first crushes the foam, and then compresses and molds the foam through physical extrusion of the screw to reduce transportation costs. The machine has a production capacity of 300kg/h, and under normal circumstances, the stacking density can reach 200-400kg/m3.
Applicable Material:
EPS
EPS Cups &Trays
XPS
EPP
TECHNICAL DATA
|
Total Power Consumption |
31.05 kw / 41.6 hp |
|
Crusher Power Consumption |
2*4 kw / 2*5.36 hp (Or according to your request) |
|
Blower Consumption |
7.5 kw / 10.1 hp (Or according to your request) |
|
Silo Volume |
10 m3 / 12 cubic yard (Or according to your request) |
|
Production Capacity |
300 kg per hour / 660 lbs per hour |
|
EPS Compression Ratio |
50:1 |
|
Compressed EPS Density |
200-400 kg/m3 / 337-674lbs/cubic yard |
|
EPS Block Dimensions |
380*380 (w/h) mm / 15.0*15.0 (w/h) in. |
|
Feed Hopper Door |
1530*547 (l/w) mm / 60.2*21.5 (l/w) in. |
|
Dimensions |
4940*4500*4430 (l/w/h) mm / 194.5*177.2*174.4 (l/w/h) in. |
|
Shipping Dimensions |
- |
|
Weight |
2600 kg / 5721 lbs |

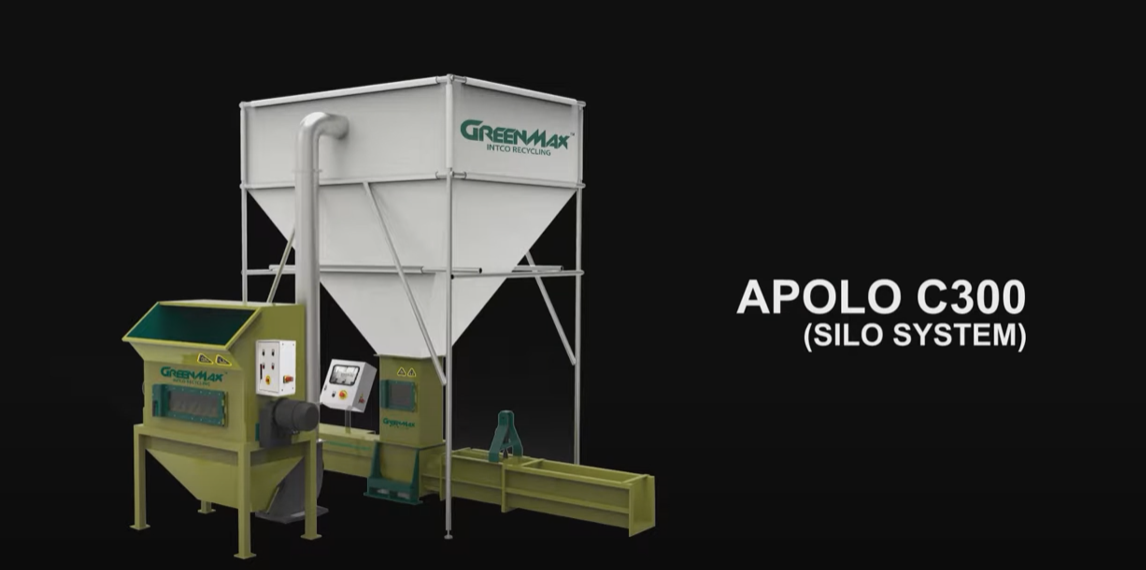

MACHINE VIDEO
