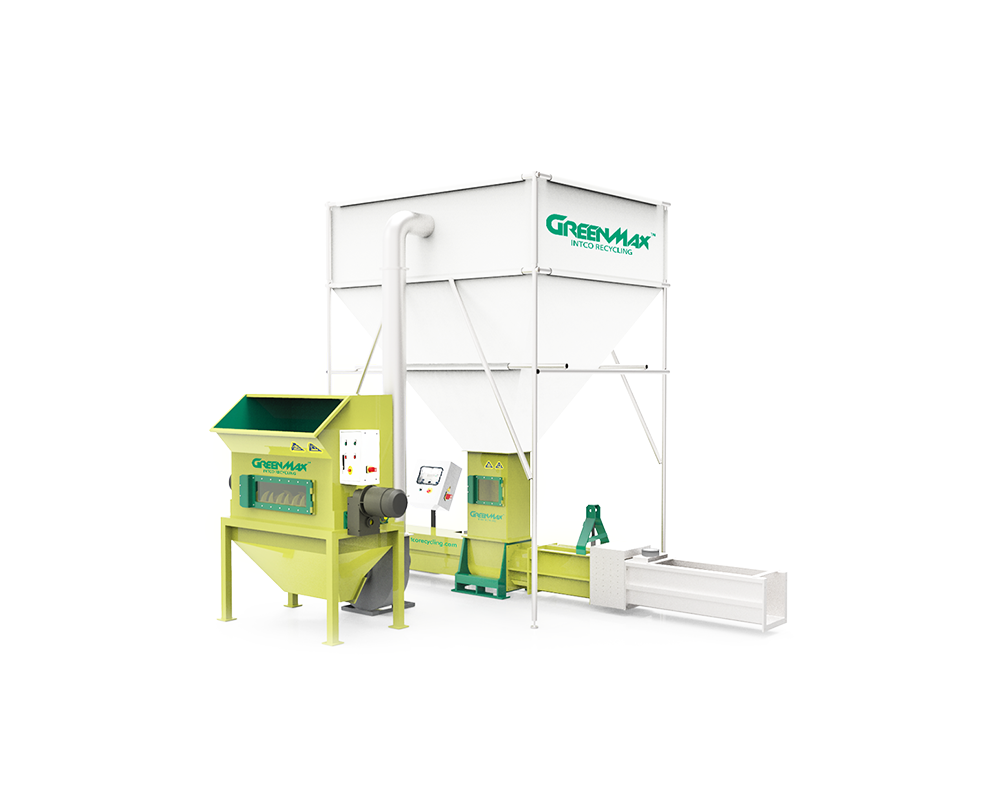

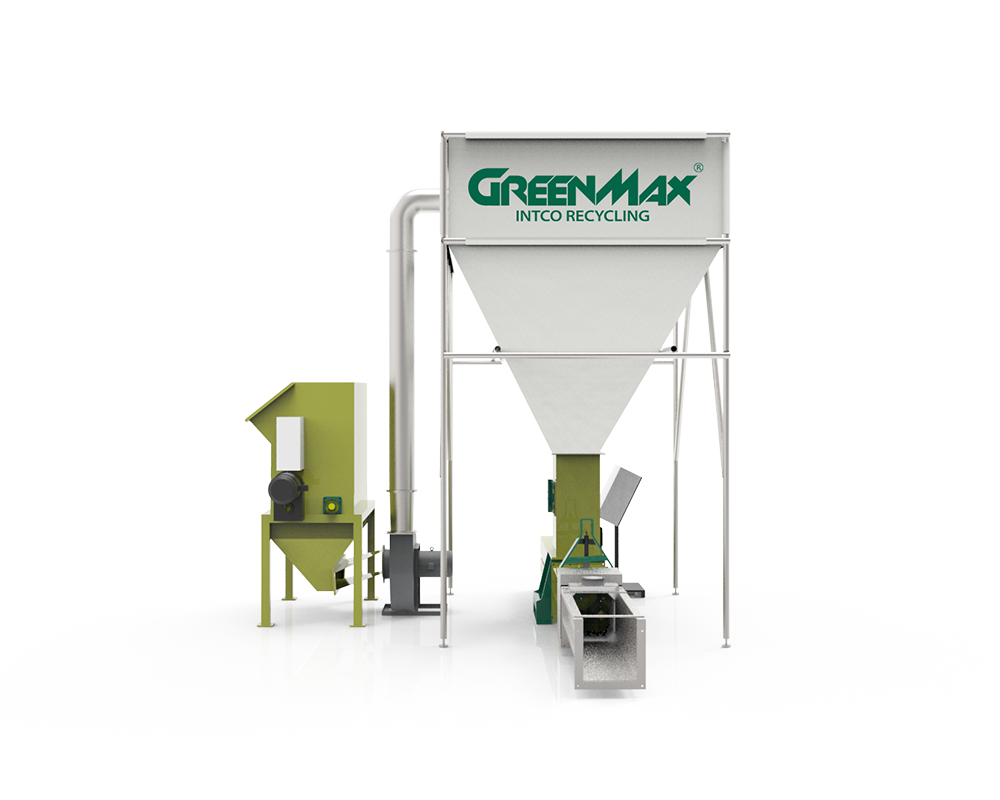

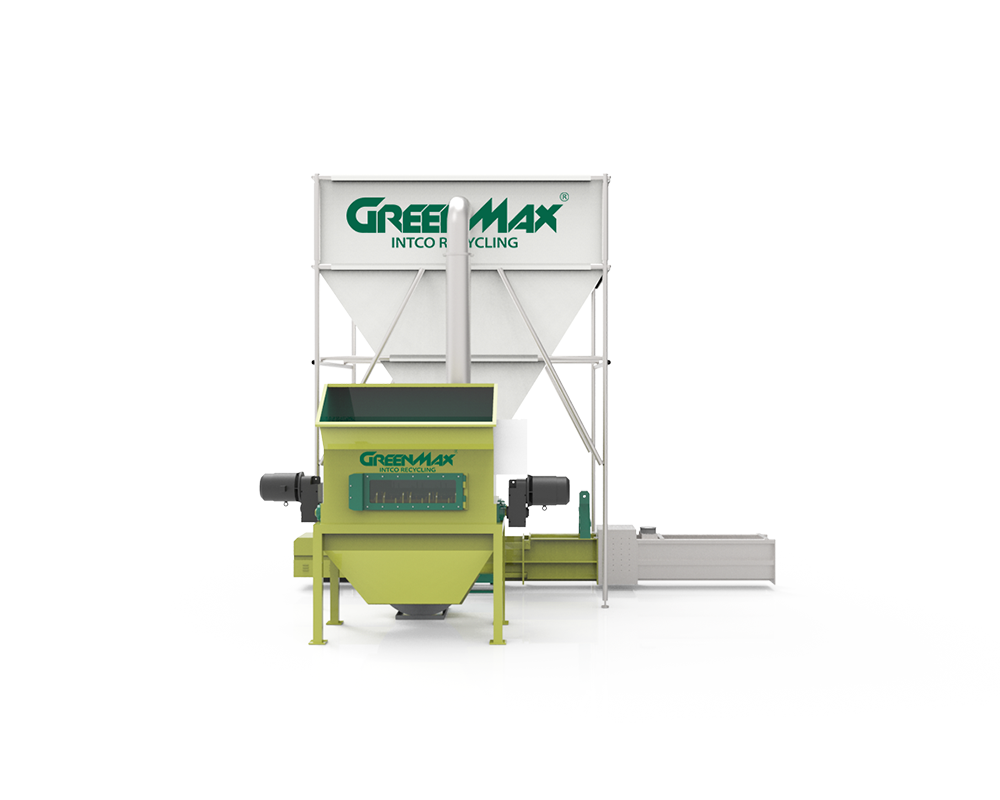

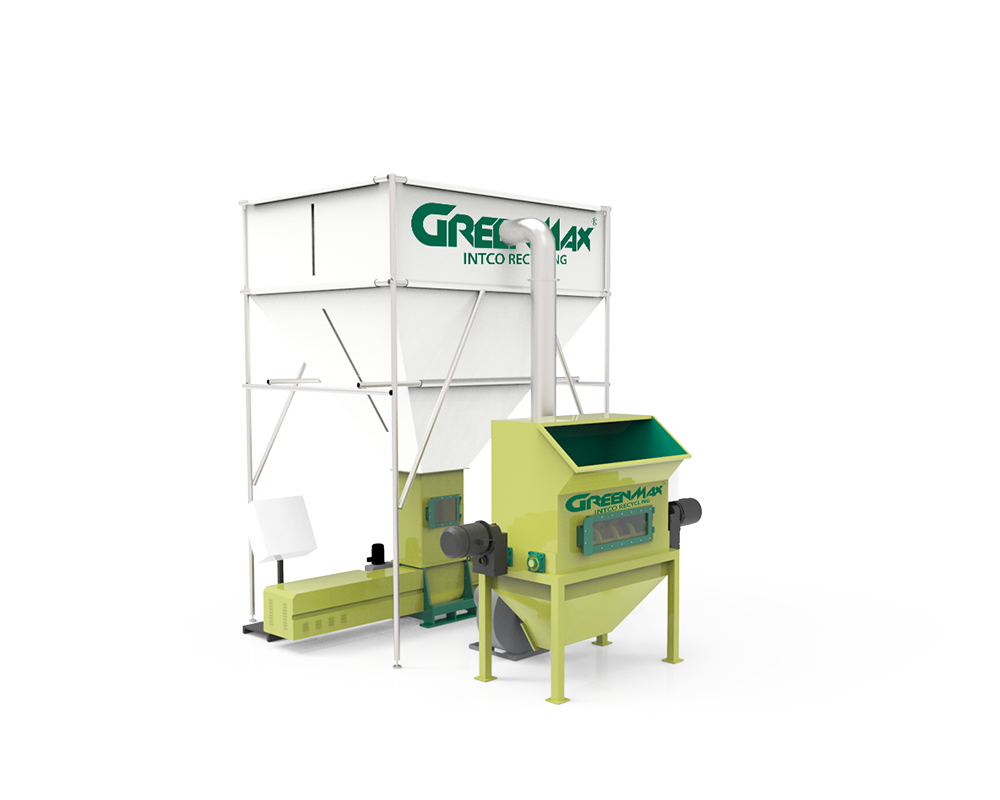

GREENMAX Foam Compactor Z-C300
Top HighlightsSurface melting technology melt the surface of compacted PE foam, the inside would not expand again.
Heavy crusher driven by two powerful motors is able to break PE foam, into 20-50 mm size small pieces.
CE approved and comply with UL/CSA standards.
SIEMENS control system guarantees easy and simple operation.
Reputable & High-quality components make the machine reliable and durable.
-
Type
Z-C300 -
Capacity
300 kg / h -
Power
46.15 kw
DESCRIPTION
GREENMAX Foam Compactor Z-C200 has a unique surface melting technology, which can prevent the compressed foam from expanding and loosening from the inside. The compression of this machine is 50:1, and generally, the density can reach 200-400kg/m3. Through the continuous compression of the screw, loose foam can be compacted into dense foam blocks, which can be sold to GREENMAX for manufacturing multiple frame products, such as interior house moulding, mirror frames and so on.
Applicable Material:
EPS
EPS CUPS/TRAYS
XPS
EPP
EPE
TECHNICAL DATA
|
Total Power Consumption |
46.15 kw / 61.88 hp |
|
Crusher Power Consumption |
2*4 kw / 2*5.36 hp (Or according to your request) |
|
Blower Power |
5.5 kw / 7.37 hp (Or according to your request) |
|
Silo Volume |
10 m3 / 13 cubic yard (Or according to your request) |
|
Capacity |
300 kg per hour / 660 lbs per hour |
|
EPS Compression Ratio |
50:1 |
|
Compressed EPS Density |
200-400 kg/m3 / 570-1140 lbs/cubic yard |
|
EPS Block Dimensions |
380*380 (w/h) mm / 15.0*15.0 (w/h) in. |
|
Feed Hopper Door |
1530*515 (l/w) mm / 60.2*20.3 (l/w) in. |
|
Dimensions |
5370*4500*4430 (l/w/h) mm / 211.4*177.2*174.4 (l/w/h) in |
|
Shipping Dimensions |
- |
|
Weight |
2640 kg / 5809 lbs |
MACHINE VIDEO
