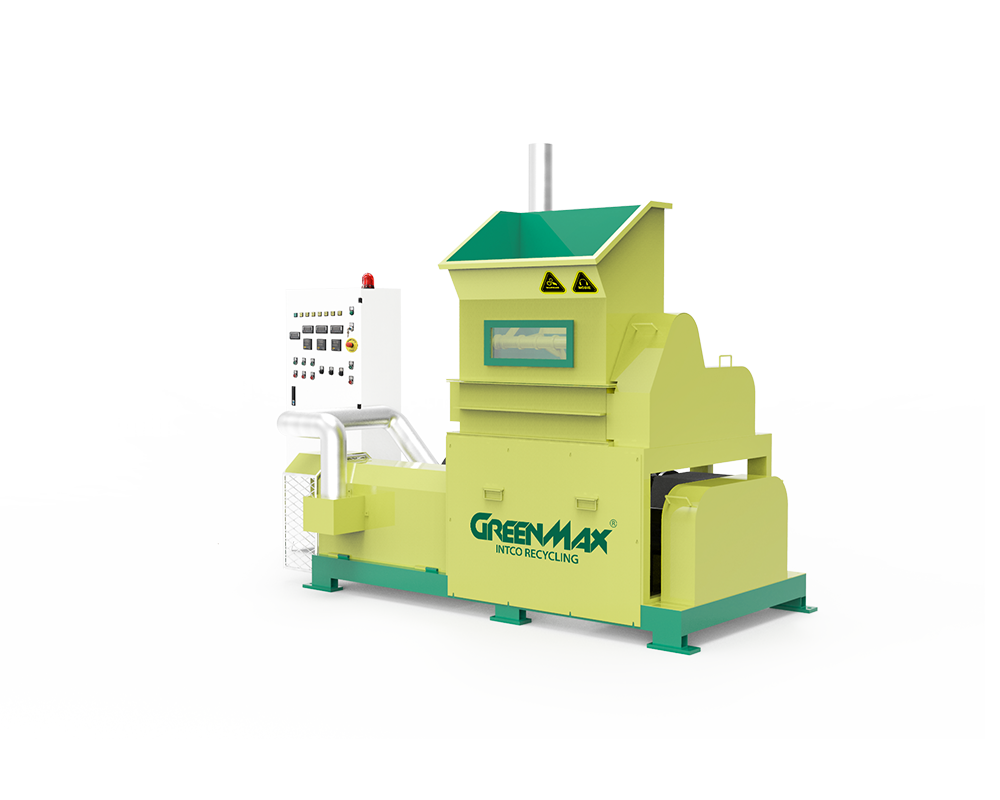

GREENMAX Foam Densifier M-C200
Top HighlightsScrew melting technology enables continuous output at a ratio of 90:1. High-density ingot weights up to 25T per 40HQ container load.
Equipped with reputable PHOENIX, SCHNEIDER, NSK components, GREENMAX ensures great safety, reliability and durability.
Three stages of temperature control manipulate output color as white as possible.
GREENMAX machines are CE approved and comply with UL/CSA standards.
Easy operation. No Additional adjustment required during operation. Just start and stop.
Easy 5S, less foam scraps blow out and scatter on the ground during operation.
-
Type
M-C200 -
Capacity
200 kg / h -
Power
39.7 kw
DESCRIPTION
GREENMAX M-C200 is a foam recycling densifier designed for crushing and compressing foam. It features a high compression ratio and is capable of handling various types of foam, including EPS, EPE, and XPS. The machine is easy to operate and maintain.
Applicable Material:
EPS/EPS DUST
EPS CUPS&TRAYS/XPS
EPE
EPE ROLL/EPE SHEET
EPP
TECHNICAL DATA
|
Motor Power |
39.7kw / 53.2hp |
|
Production Capacity |
200 kg per hour / 440 lbs per hour |
|
EPS Compression Ratio |
90:1 |
|
Compressed EPS Density |
600-800 kg/m³/ 1011-1348lbs/cubic yard |
|
Feed Hopper Door |
960*532（l/w) mm / 37.8*20.9（l/w) in. |
|
Dimensions |
2900*1400*2195 (l/w/h) mm / 114.2*55.1*86.4 (l/w/h) in. |
|
Shipping Dimensions |
3000*1500*2445 (l/w/h) mm / 118.1*59.1*96.3 (l/w/h) in. |
|
Weight |
2500 kg / 5500 lbs |

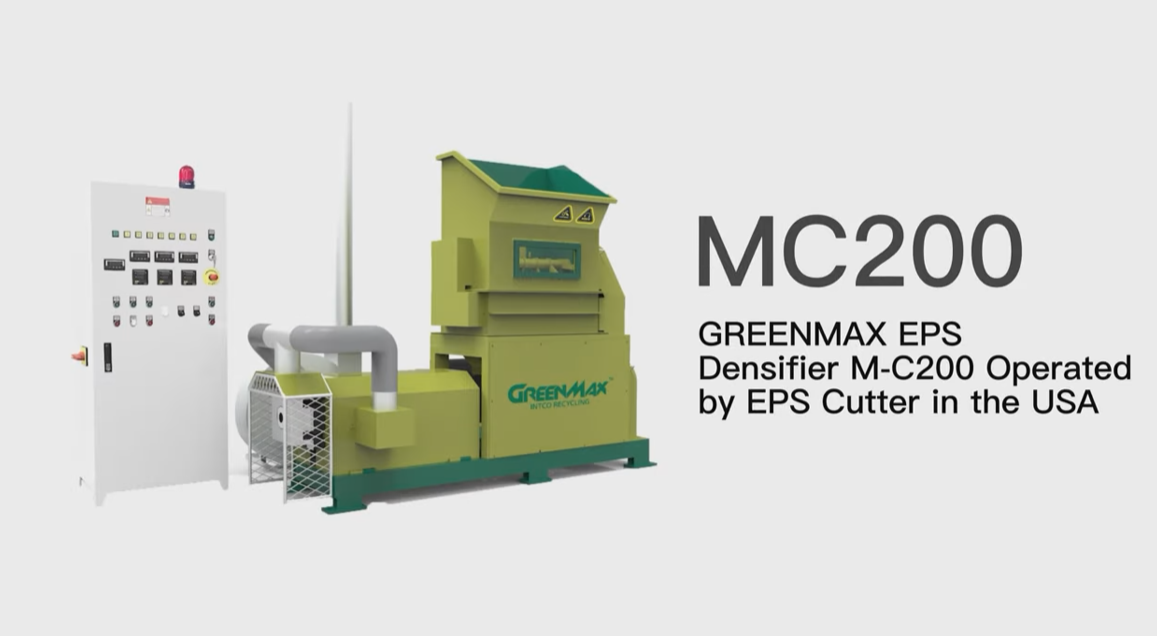

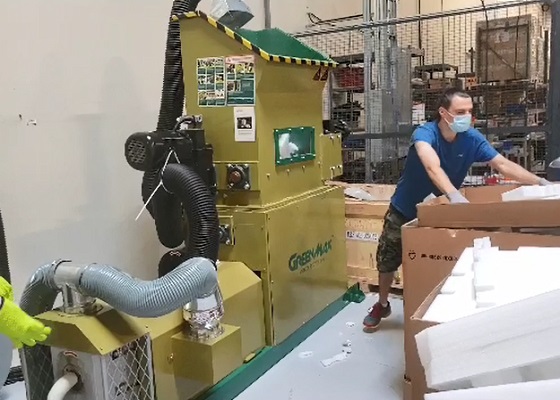

MACHINE VIDEO
