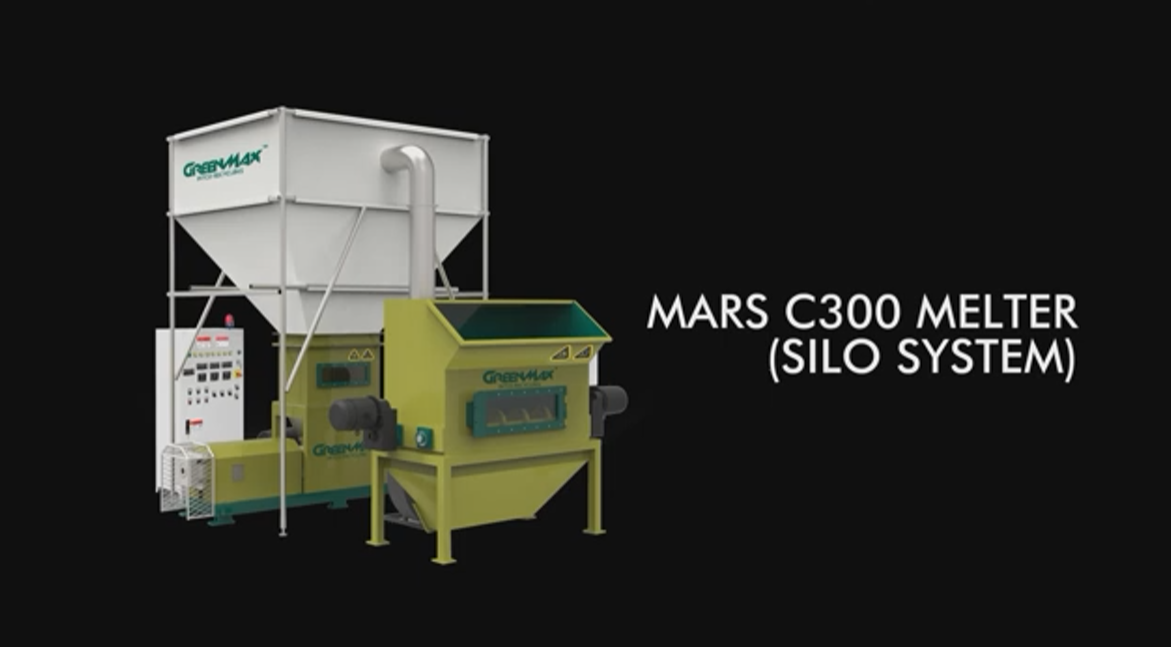

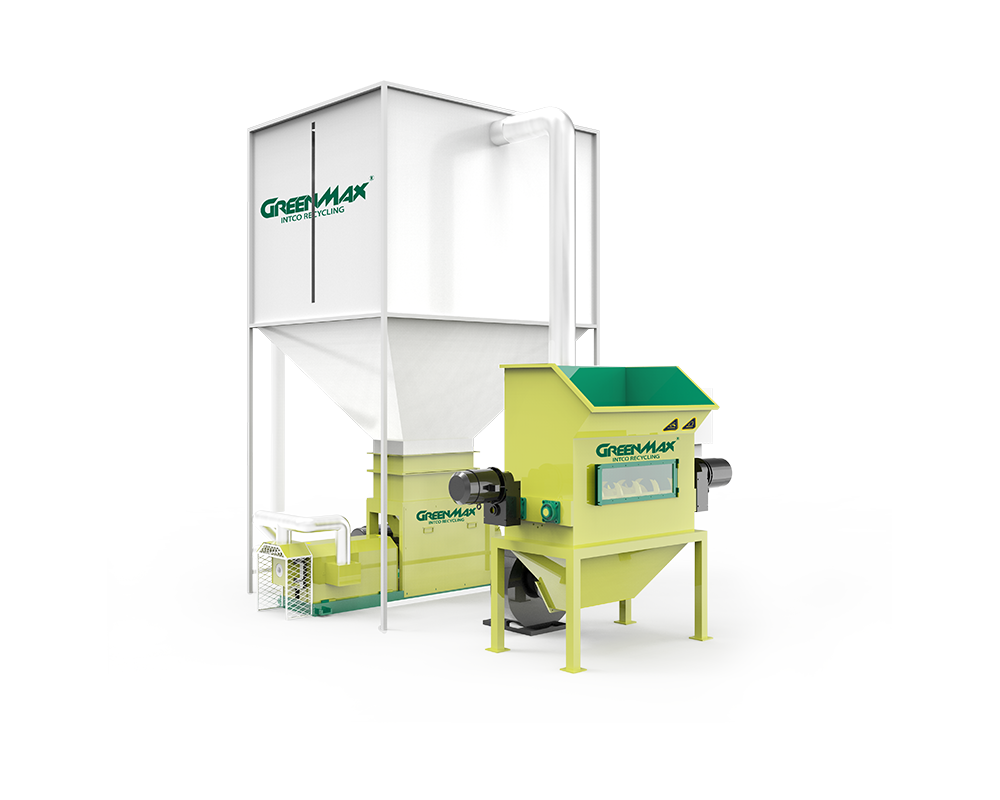

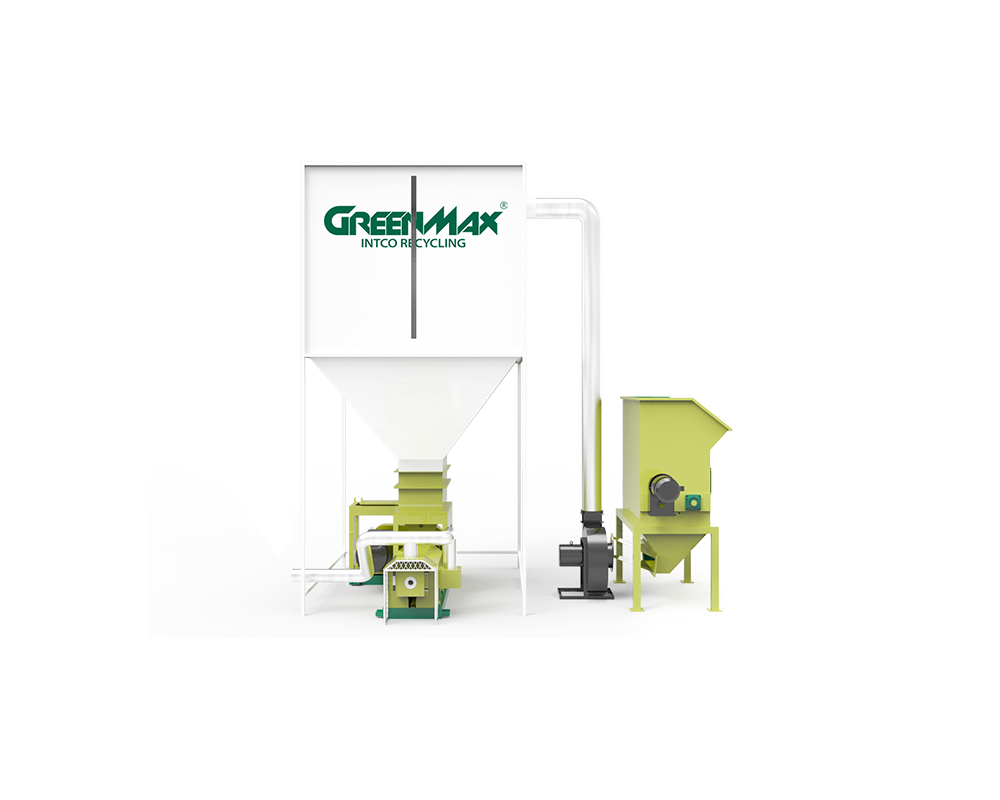

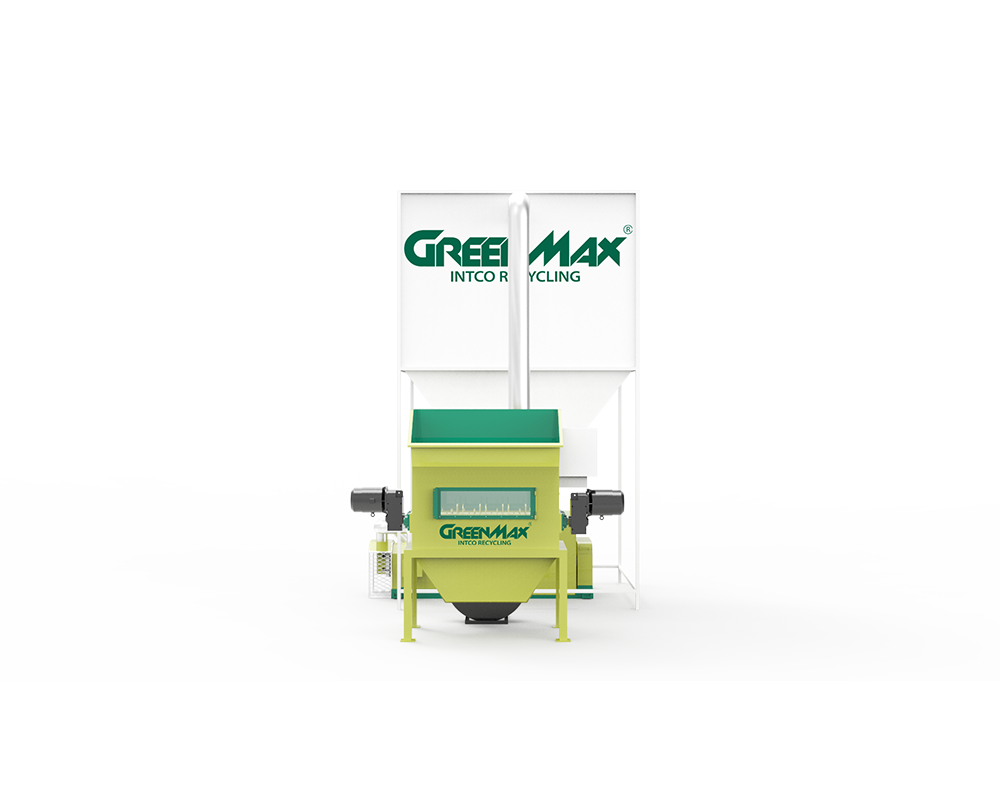

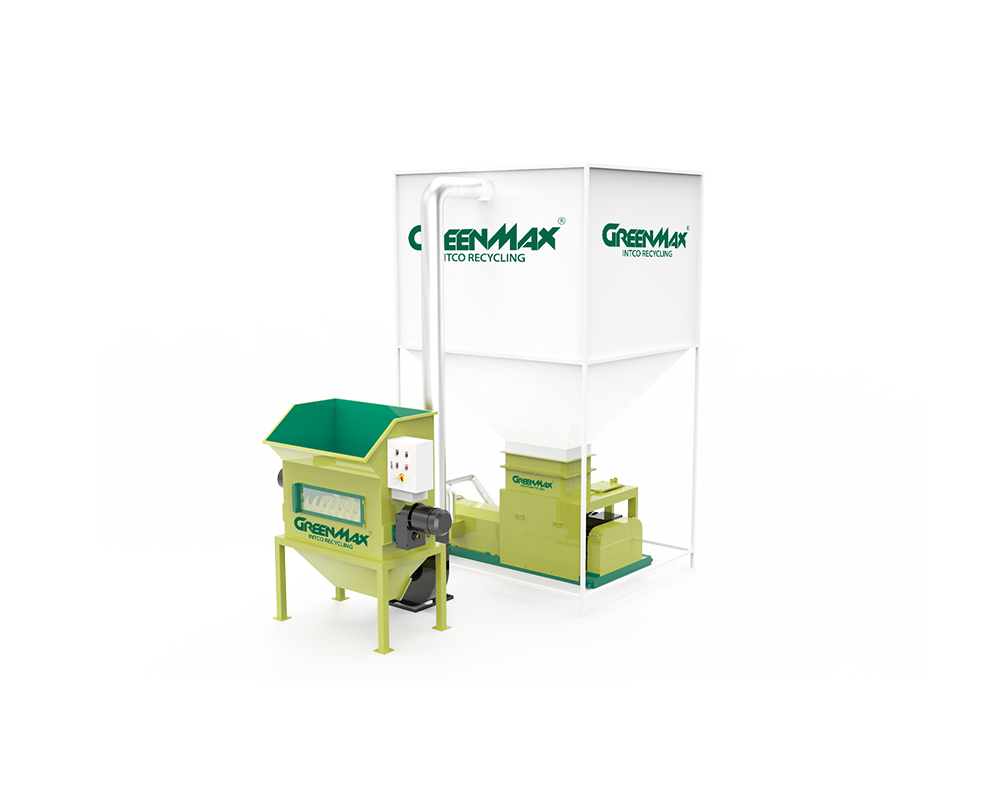

GREENMAX Foam Densifier M-C300
Top HighlightsScrew melting technology enables continuous output at a ratio of 90:1.
Equipped with reputable PHOENIX, SCHNEIDER, NSK components.
GREENMAX ensures great safety, reliability and durability.
GREENMAX machines are CE approved and comply with UL/CSA standards.
Easy operation. No Additional adjustment required during operation.
-
Type
M-C300 -
Capacity
300 kg / h -
Power
47.7 kw
DESCRIPTION
GREENMAX M-C300 is a foam recycling densifier designed for crushing and compressing foam. It features a high compression ratio and is capable of handling various types of foam, including EPS, EPE, and XPS. The machine is easy to operate and maintain.
Applicable Material:
EPS/EPS DUST
EPS CUPS&TRAYS/XPS
EPE
EPE ROLL/EPE SHEET
EPP
TECHNICAL DATA
|
Motor Power |
47.7kw / 64.9hp |
|
Crusher Power |
2*4 kw / 2*5.36 hp (Or according to your request) |
|
Blower Power |
7.5 kw / 10 hp (Or according to your request) |
|
Silo Volume |
11.5 m³/ 15 cubic yard (Or according to your request) |
|
Production Capacity |
300 kg per hour / 660 lbs per hour |
|
EPS Compression Ratio |
90:1 |
|
Compressed EPS Density |
600-800 kg/m³ / 1011-1348lbs/cubic yard |
|
Feed Hopper Door |
1530*800（l/w) mm / 60.2*31.5（l/w) in. |
|
Dimensions |
3400*4850*5000(l/w/h) mm / 133.9*191*196.8(l/w/h) in. |
|
Shipping Dimensions |
- |
|
Weight |
3200 kg / 7041 lbs |
