GREENMAX Foam Densifier M-C50
Top HighlightsScrew melting technology enables continuous output at a ratio of 90:1.
GREENMAX ensures great safety, reliability and durability.
Three stages of temperature control manipulate output color as white as possible.
Easy operation. No Additional adjustment required during operation.
GREENMAX machines are CE approved and comply with UL/CSA standards.
-
Type
M-C50 -
Capacity
50 kg / h -
Power
9.7 kw
DESCRIPTION

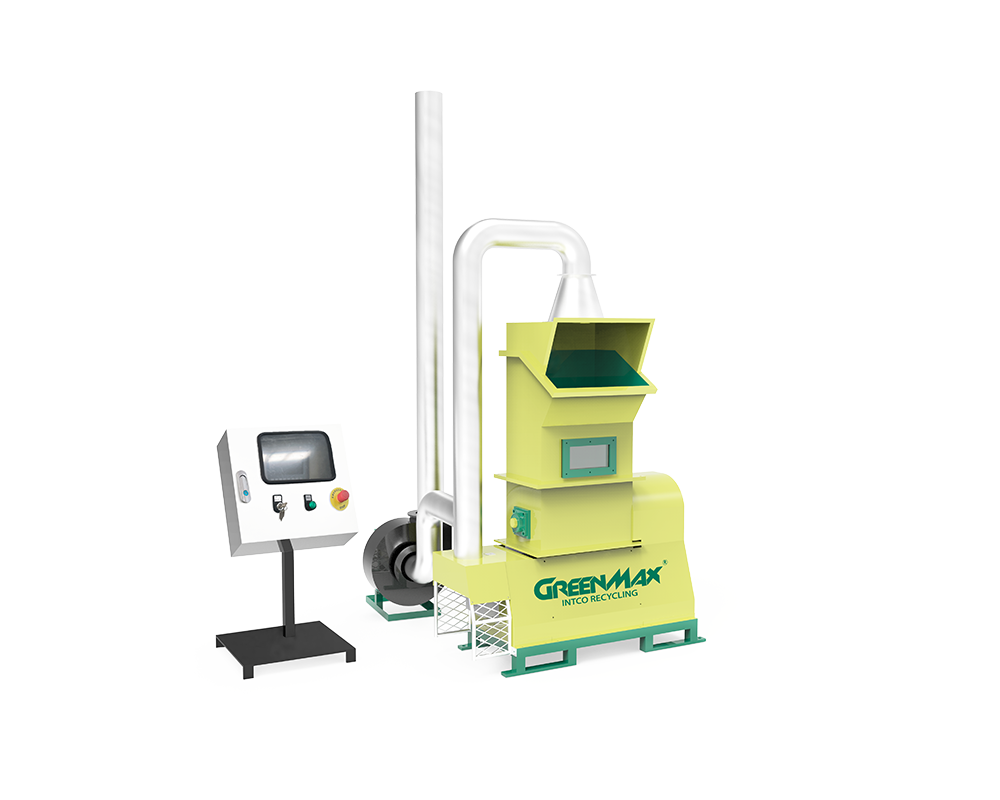

GREENMAX M-C50 is a foam recycling densifier designed for crushing and compressing foam. It features a high compression ratio and is capable of handling various types of foam, including EPS, EPE, and XPS. The machine is easy to operate and maintain.
Applicable Material:
EPS/EPS DUST
EPS CUPS&TRAYS/XPS
EPE
EPE ROLL/EPE SHEET
EPP
GREENMAX machines are often part of a larger recycling system and can be integrated with other equipment like shredders and pelletizers to streamline the recycling process.
TECHNICAL DATA
|
Motor Power |
9.7kw / 13hp |
|
Production Capacity |
50 kg per hour / 110 lbs per hour |
|
EPS Compression Ratio |
90:1 |
|
Compressed EPS Density |
600-800 kg/m³/ 1011-1348lbs/cubic yard |
|
Feed Hopper Door |
570*370 (l/w) mm / 22.4*14.6(l/w) in. |
|
Dimensions |
1415*1085*1600(l/w/h) mm / 55.7*42.7*63.0(l/w/h) in. |
|
Shipping Dimensions |
1580*1185*1850(l/w/h) mm / 62.2*46.7*72.8(l/w/h) in. |
|
Weight |
900 kg / 1984 lbs |
