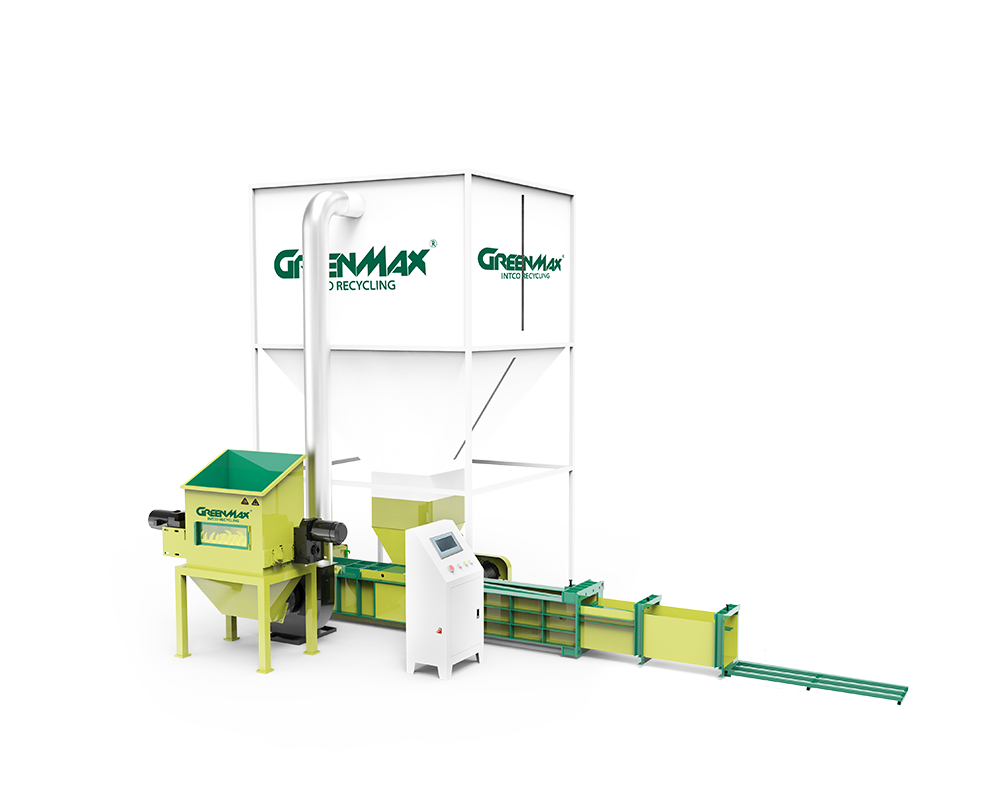

GREENMAX Foam Hydraulic Compactor H-C300
Top HighlightsCompression Ratio up to 70：1
5 to 2 times than screw on compression density
Lower risk of melting
Simplicity of operator and easy to use
-
Type
H-C300 -
Capacity
200 - 300 kg / h -
Power
41.5 kw
DESCRIPTION
GREENMAX H-C300 is a foam recycling machine which works by crushing and compressing foam waste into a denser form, easy for transportation and storage. The compression density of this machine is 5 to 2 times that of the screw. And the machine can compress loose foam at a ratio of 70:1, which can be operated easily.
Applicable Material:
EPS
EPS DUST
PU
EPP
TECHNICAL DATA
|
Total Power Consumption |
24.5kw |
|
|
Hydraulic Press Power |
11kw |
Both work at different time |
|
Feeder Power |
11kw |
|
|
Crusher Power |
2*4kw |
|
|
Blower Power |
5.5kw |
|
|
Production Capacity |
200kg/h-300kg/h (depends on different kinds) |
Varies depending on the material’s density and humidity |
|
EPS Compression Density |
300-380kg/mmm |
Varies depending on the material’s density and humidity |
|
EPS Compression Dimension |
390*420(w/h)mm |
|
|
Feed Hopper Door |
1200*800（l/w）mm |
|
|
Square Meters |
8162*4355*4430(l/w/h)mm |
|
|
Weight Approximately |
3.5t |
|

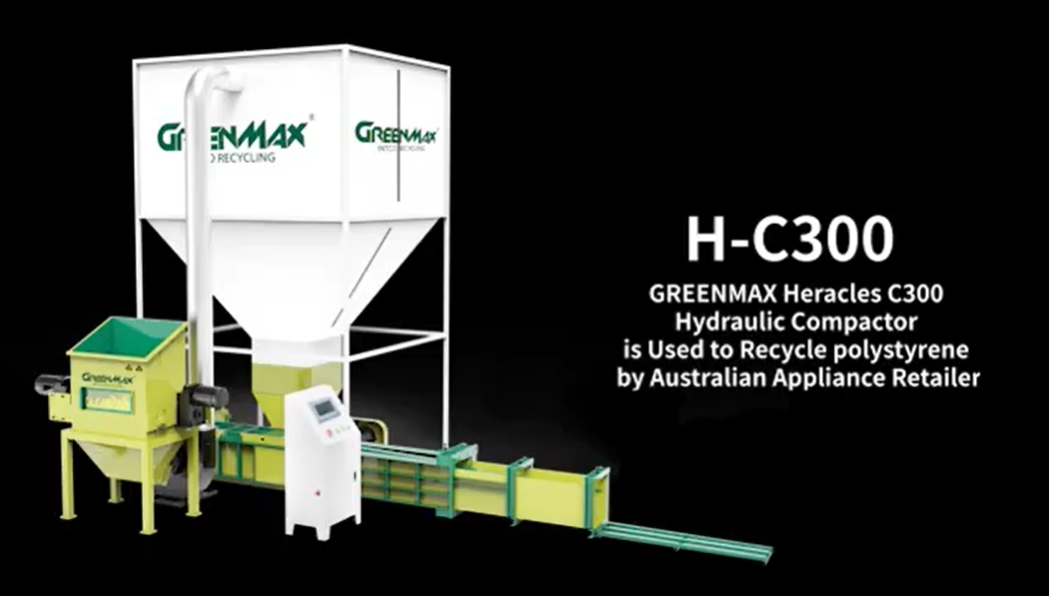

MACHINE VIDEO
