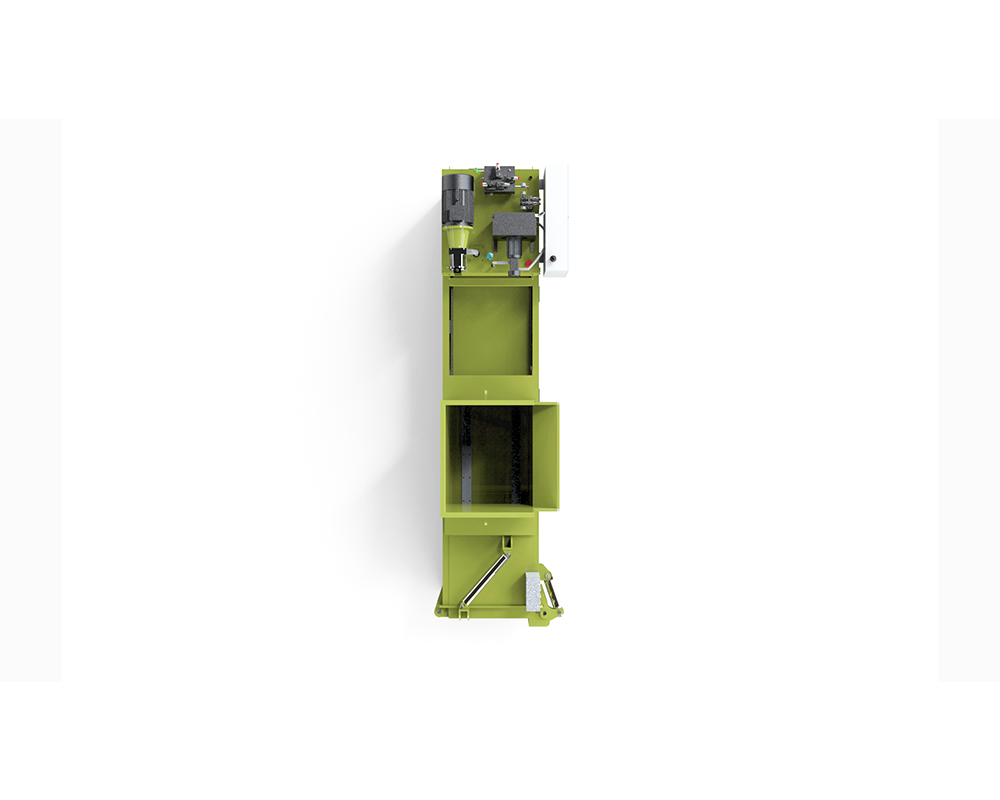

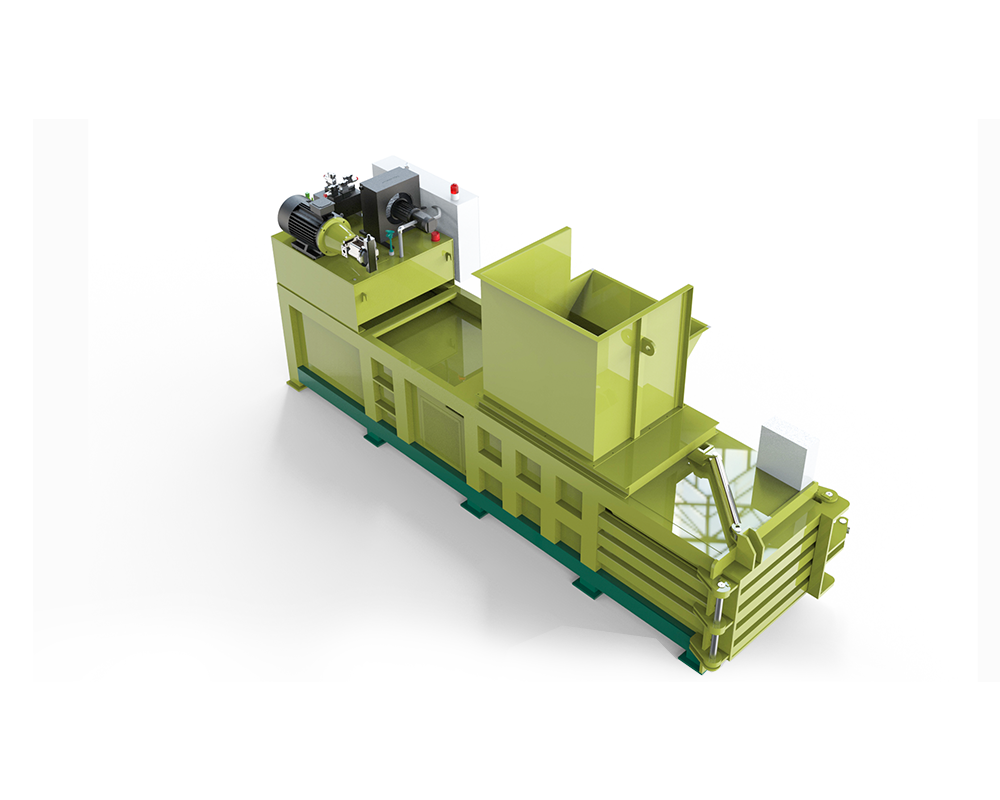

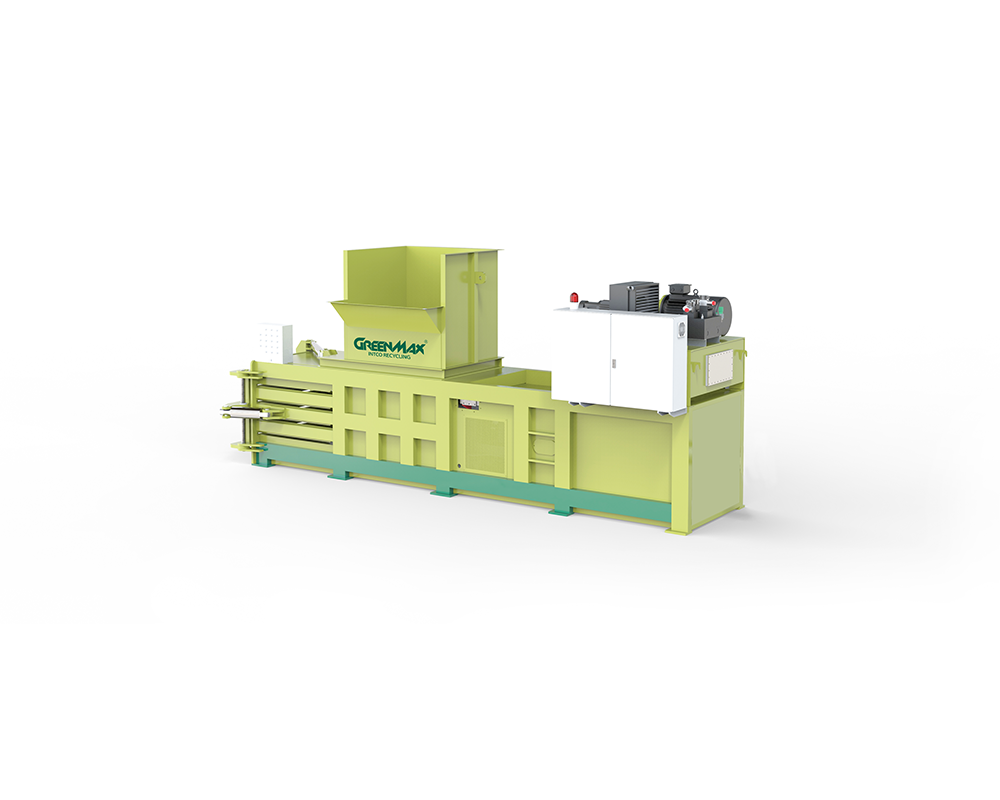

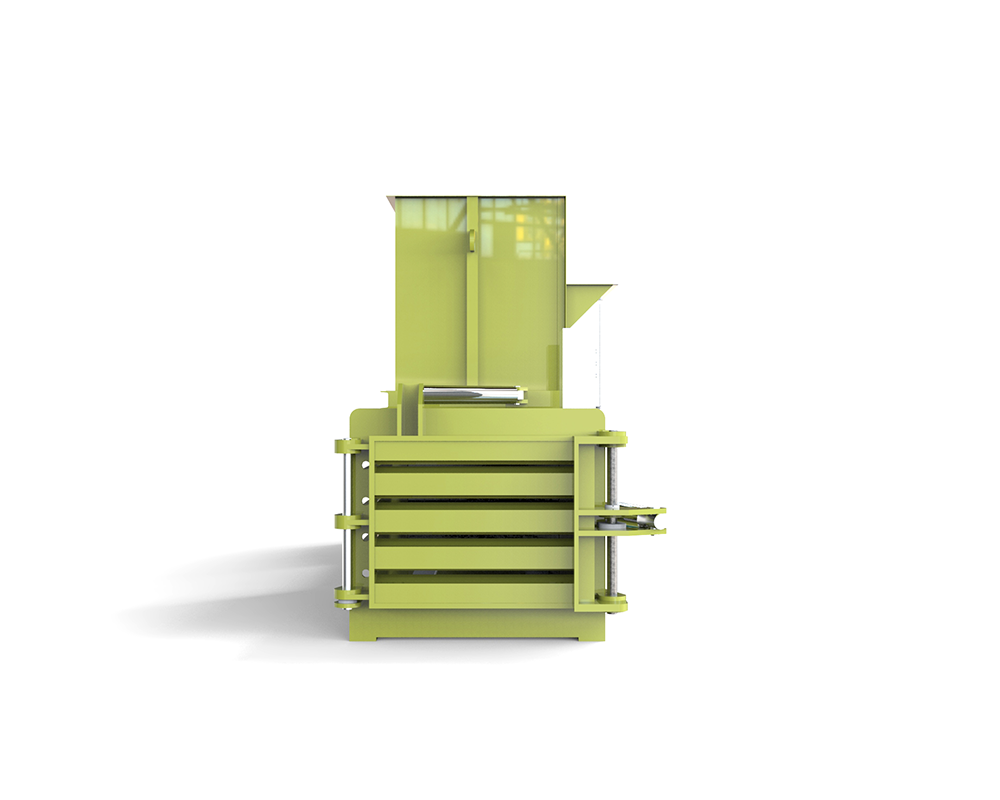

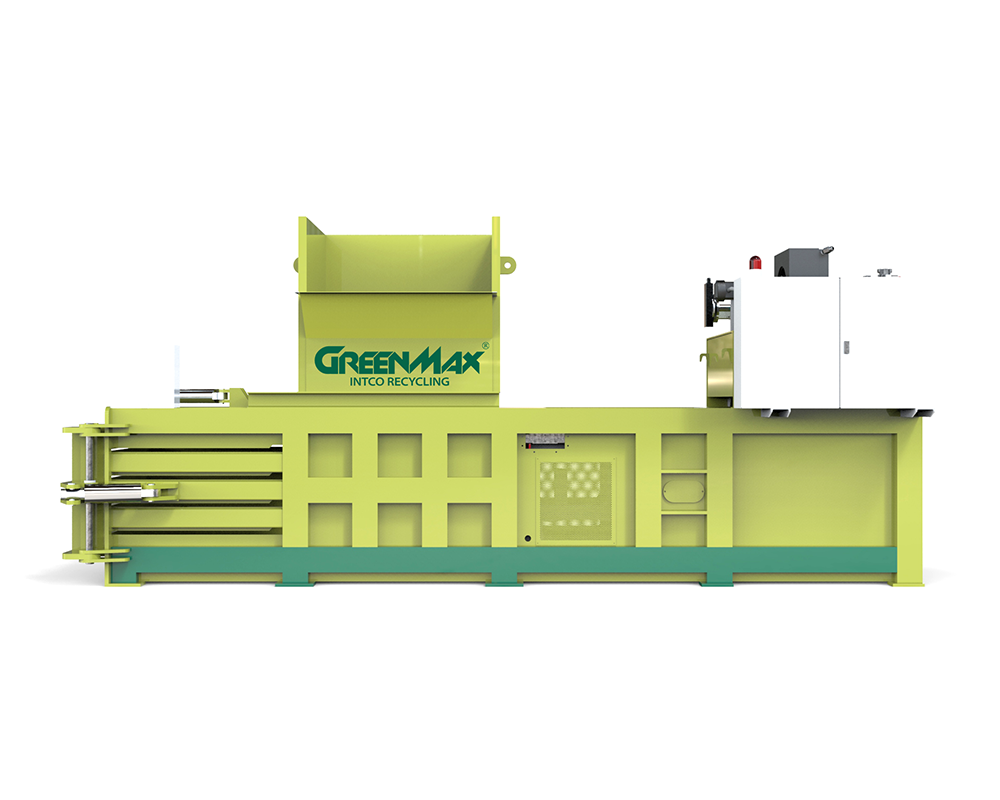

GREENMAX Horizontal Baler B-HH
Top HighlightsHeavy duty close-gate design for more tighter bales.
Hydraulic locked gate ensures more convenient operation.
Unique double-cutting design of cutters improves the cutting efficiency and lengthens the lifespan of the cutters.
Particular anti- slide design of the machine makes nicer bales
Unique trunnion-mounted frame and ball-end joint design for the main cylinder avoid the torque on the rod, which lengthens the lifespan of the seals.
The press heads are specially processed by planomiller, ensures the precise running of the ram.
Use high quality hydraulic valves from Taiwan, ensures the stable running of the machine.
The heavy duty machine body makes sure only flat ground is required by the installation.
"HARDOX" in my body.
-
Type
B-HH -
Capacity
700 - 800 kg / h -
Power
18.5 kw
DESCRIPTION
GREENMAX B-HH is a device specially designed for compressing and baling various waste materials. The machine is equipped with a heavy-duty closing door and hydraulic locking gate design, which enables tighter bales and facilitates the transportation and processing of waste plastics.
Applicable Material:
Specialized in recycling and compressing the loose materials like plastic film, PET bottles, plastic pallets, waste computer shell, waste paper, cartons, cardboards trims/scraps, foam etc.
TECHNICAL DATA
|
Pressure |
60tons |
|
Main Motor Power |
18.5kw |
|
Cooling System |
Air Cooler/Water Cooler |
|
Oil Reservoir |
380L |
|
Number of Belting |
4lines |
|
Feed Opening Size |
1200x980mm |
|
Chamber size (LxWxH) |
2400x980x780mm |
|
Bale Size(LxWxH) |
1000x1000x800mm |
|
Bale Density |
450-550kgs/m³ |
|
Throughput |
1-2tons/h |
|
Machine Weight |
5.2tons |
|
Machine Overall Dimensions |
6100x1400x2000mm |
|
Feeding Device |
Cyclonr/Iron coneryor |
