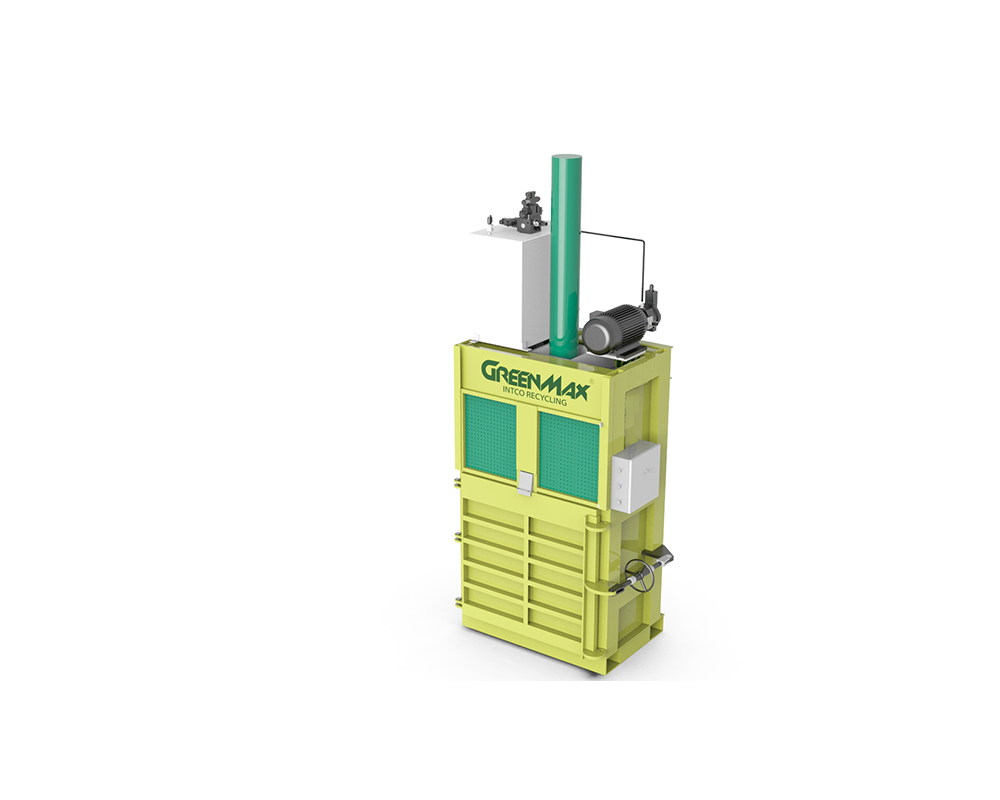

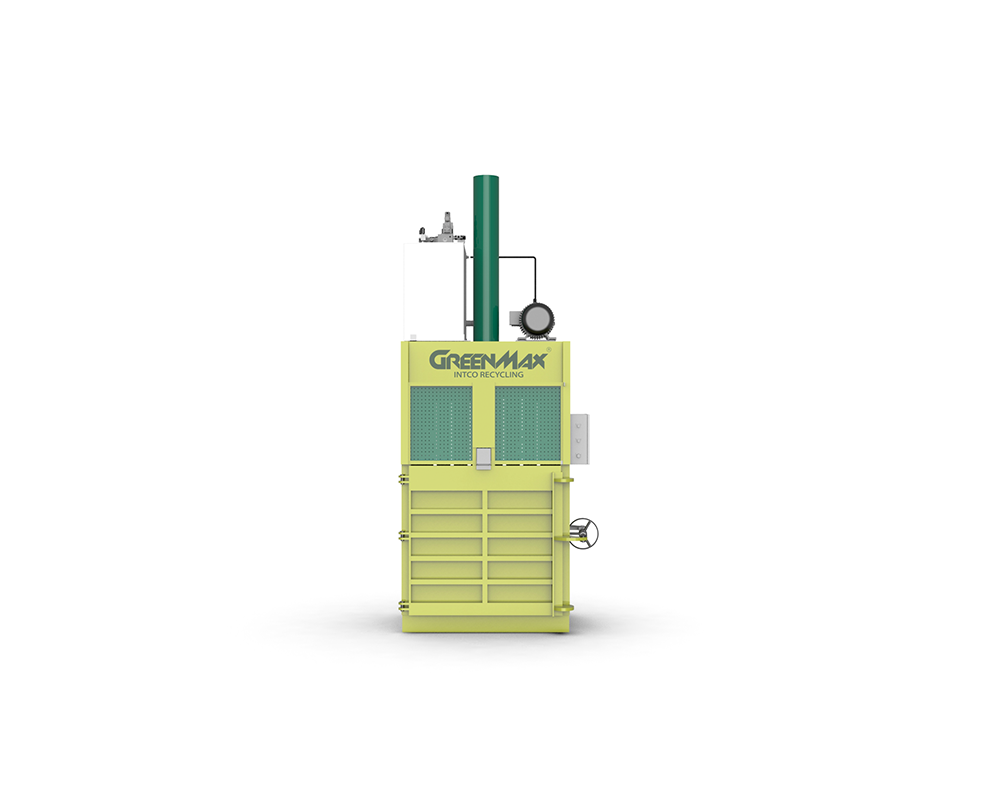

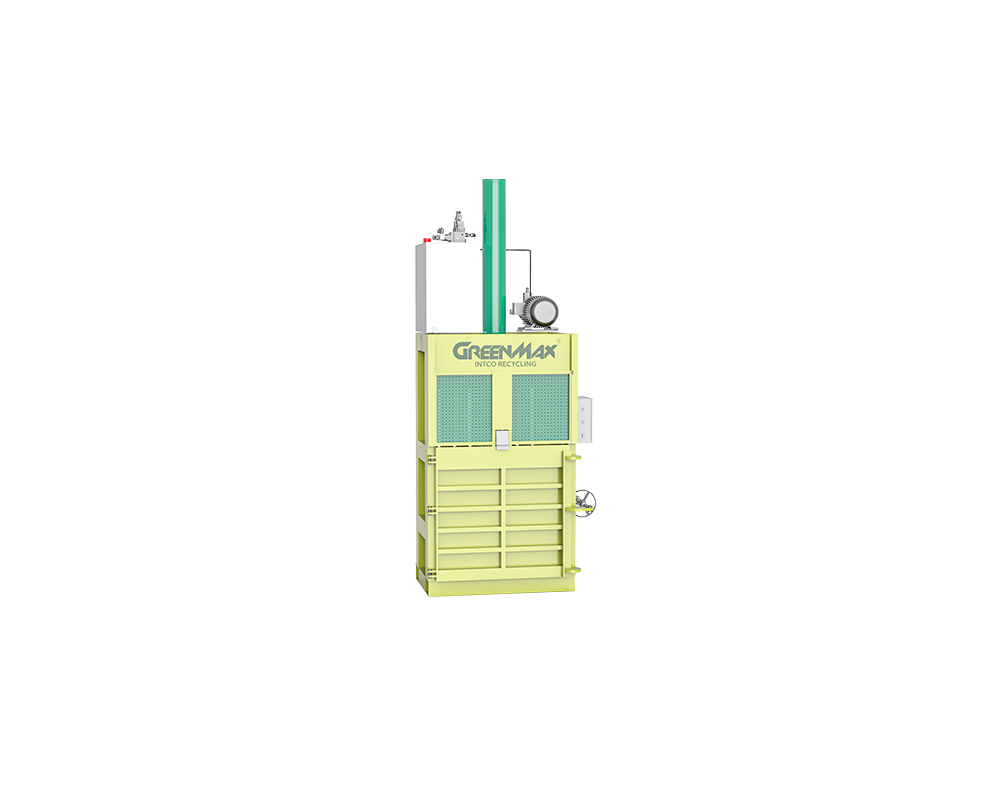

GREENMAX Vertical Baler B-V
Top Highlights•Automatic chain bale ejector for quickly and easily ejecting the bales out from the machine.
•The ram will stop running downwards when the feeding gate is opened which ensure the safety of the operation.
•Equipped with independent emergency stop for safe operation.
•Equipped with Euro and U.S standard anti- rebound gate structure which makes sure the safety of operation.
•Special ram guides design makes the platen not slope because of uneven materials feedings during compression.
-
Type
B-V -
Capacity
500 - 700 kg / h -
Power
15 kw
DESCRIPTION
GREENMAX B-V can efficiently compress various loose waste materials into compact bales for subsequent storage, transportation and processing. At the same time, it has the advantages of high compression efficiency, simple operation, safety and reliability.
Applicable Material:
Specially used for recycling the cans, PET bottles, oil tank etc.
TECHNICAL DATA
|
Pressure |
80tons |
|
Feed Opening Size (LxH) |
1200 x 500mm |
|
Baling Chamber Height |
1700mm |
|
Bale Size (LxWxH , H is adjustable) |
1200·800·(300-1200)mm |
|
Bale Weight |
200- 380kgs |
|
Power |
15kw |
|
Machine Weight |
2500kgs |
|
Machine Overall Dimension |
1700x1200x3900mm |
