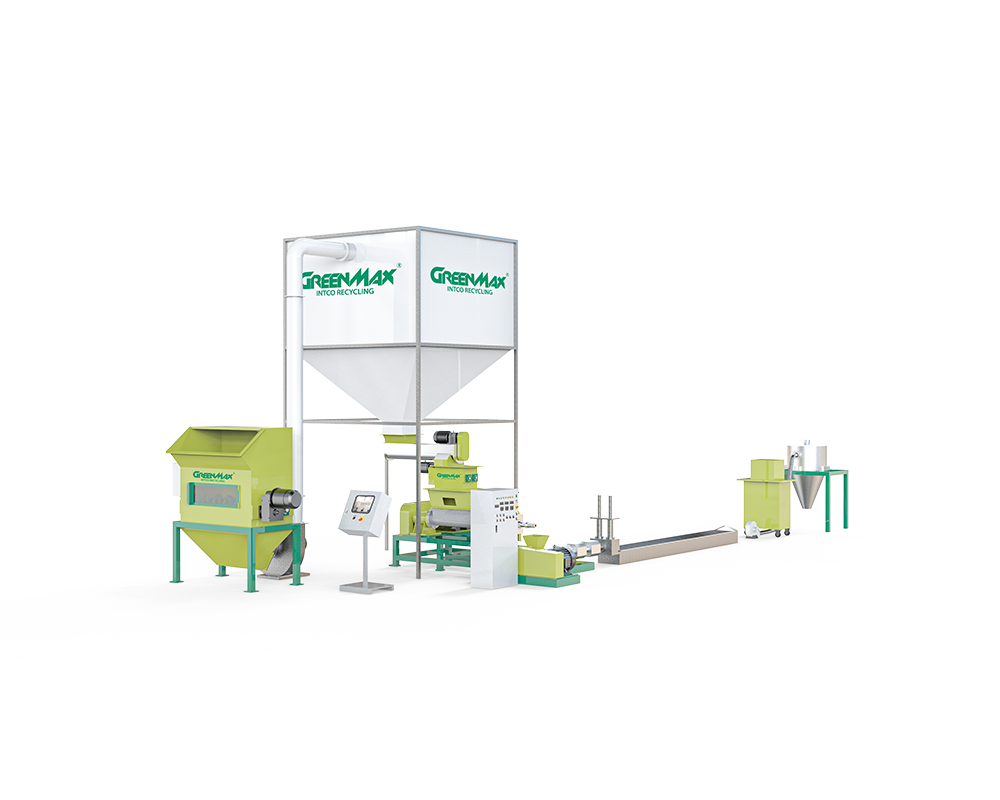

GREENMAX Foam Pelletizer
Top HighlightsCustomized design, which can be used stand-alone, integrated into the complete system with the shredder and compactor, or even into washing lines.
Production automation, manpower saving.
Perfect adaption to multiple materials processing system.
Online installation guidance and other training service are available.
Space saving and Maintenance friendly.
The lower investment cost for high quality and durable machines.
-
Type
Foam Pelletizer -
Capacity
100-200 kg / h -
Power
56.2kw
DESCRIPTION
GREENMAX Foam Pelletizer can produce foam particles without destroying the original molecular structure, and the particles produced can be used in a wide range of applications. This equipment processes waste foam through processes such as crushing, melting, cooling, and granulation to make the final product into particles.
Applicable Material:
EPS
EPP
EPE
XPS
Rigid Plastic
TECHNICAL DATA
|
Conveyor |
|
|
|
Crusher |
Motor Power: 2*4kw |
|
|
Fan |
Motor Power: 7.5kw |
|
|
Hopper |
Volume: ≈15m³ |
|
|
Screw Feeder |
Motor Power: 2.2kw |
|
|
Melter |
Motor Power: 22kw |
|
|
Granulator |
Motor Power: 7.5kw |
|
|
Filter |
Filter Mode: Double Plate Type |
Hydraulic Motor Power: 3kw |
|
Pelletizing System |
Pelletizing Motor Power: 3kw |
|
|
Pelletizing System |
Conveying Fan Power: 3kw |
|
